| Airflow direction | Air intake from left and front, air exhaustion from right |
|---|---|
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Weight without packaging | 2.94 kg (6.48 lb) |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| Long-term operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) |
| Warranty | 1 Year |
| Console port | RJ45 |
| 1000M electrical interface | 24 |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) |
| Typical power consumption [W] | 41.7 |
| Height [mm] | 43.6 mm |
| Flash memory | 512 MB |
| Power supply mode | AC built-in |
| MTBF [year] | 55.72 |
| USB | Not supported |
| Number of card slots | 0 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| RPS input | Not supported |
| Depth [mm] | 220.0 mm |
| Maximum number of 40GE ports | 0 |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum power consumption [W] | – Not providing the PoE function: 53.2 W/- 100% PoE loads: 433.2 W (PoE: 380 W) |
| Brand | Huawei |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC, 50/60 Hz/- High-Voltage DC input: 240 V DC |
| Memory | 512 MB |
| Input voltage range [V] | – AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz/- High-Voltage DC input: 190 V DC to 290 V DC |
| Types of fans | Built-in |
| Maximum number of 25GE ports | 0 |
| PoE | Supported |
| Noise at normal temperature (acoustic power) | 50 |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: 7 kV |
| Maximum number of 10GE ports | 0 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Weight with packaging | 3.91 kg (8.62 lb) |
| Maximum number of physical ports on the entire device | 28 |
| Redundant power supply | Not supported |
| Maximum number of FE ports | 28 |
| Maximum number of GE ports | 28 |
| 1000M optical interface | 4 |
| Noise at normal temperature (acoustic pressure) | 38.2 |
| PN | 98011321 |
| Maximum number of 100GE ports | 0 |
| Maximum input current [A] | 6 A |
| Number of power slots | 0 |
| Model | S5735-L24P4S-A1 |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Typical heat dissipation [BTU/h] | 142.29 |
| PoE power supply | Supported |
| Chassis height [U] | 1 |
| Maximum heat dissipation [BTU/h] | – Not providing the PoE function: 181.52/- 100% PoE loads: 1478.12 |
| Wide [mm] | 442.0 mm |
* NOTE: Image may not exactly match the product

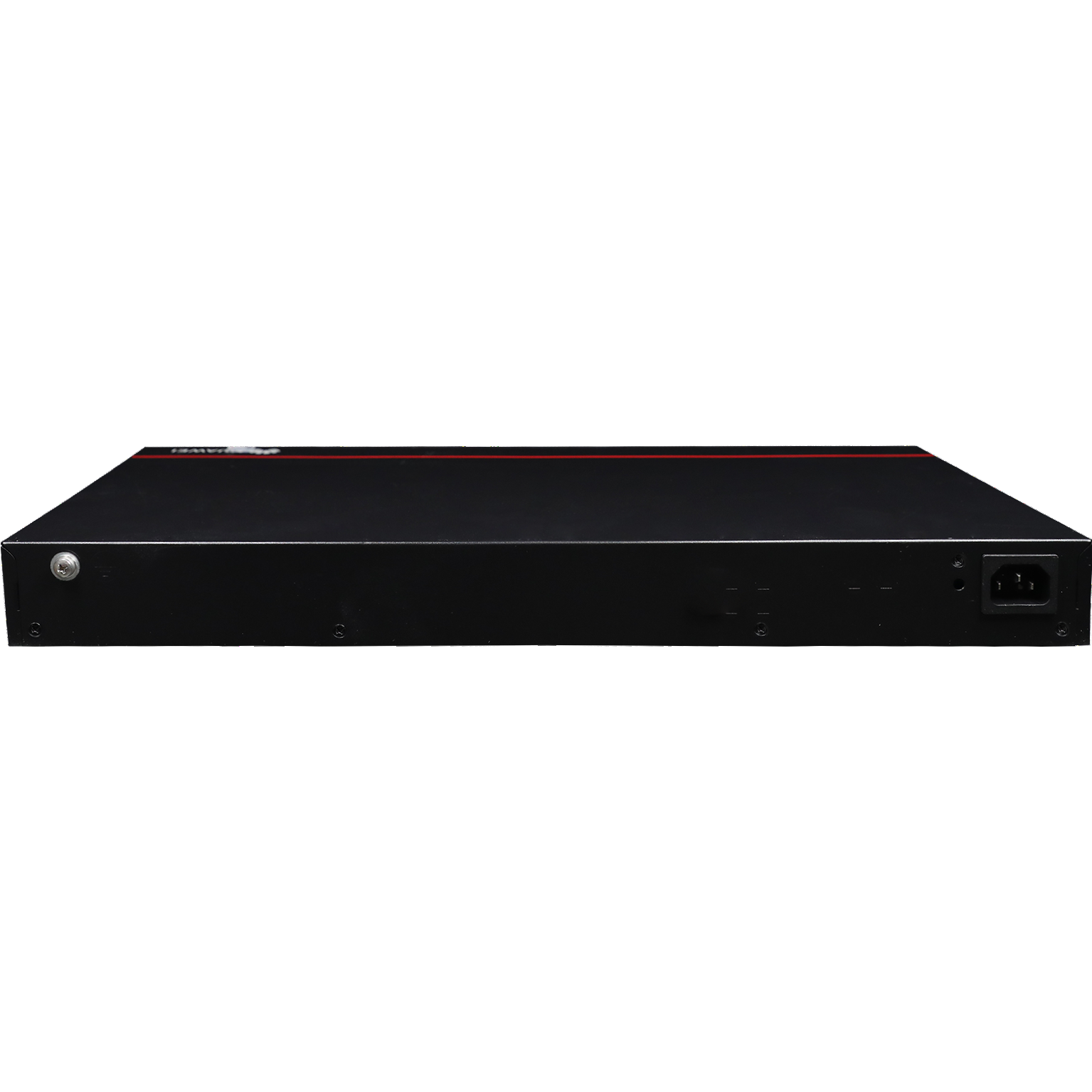

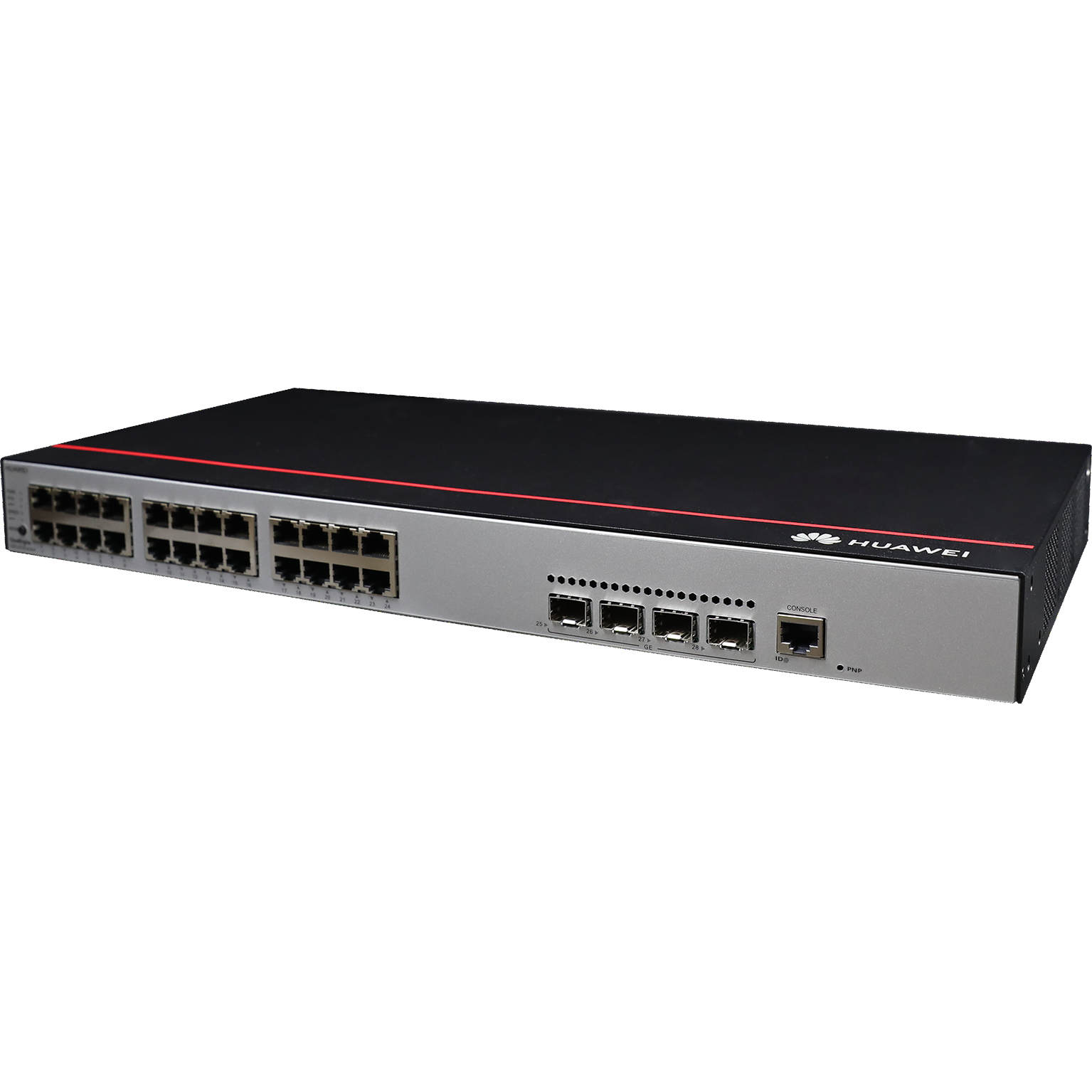

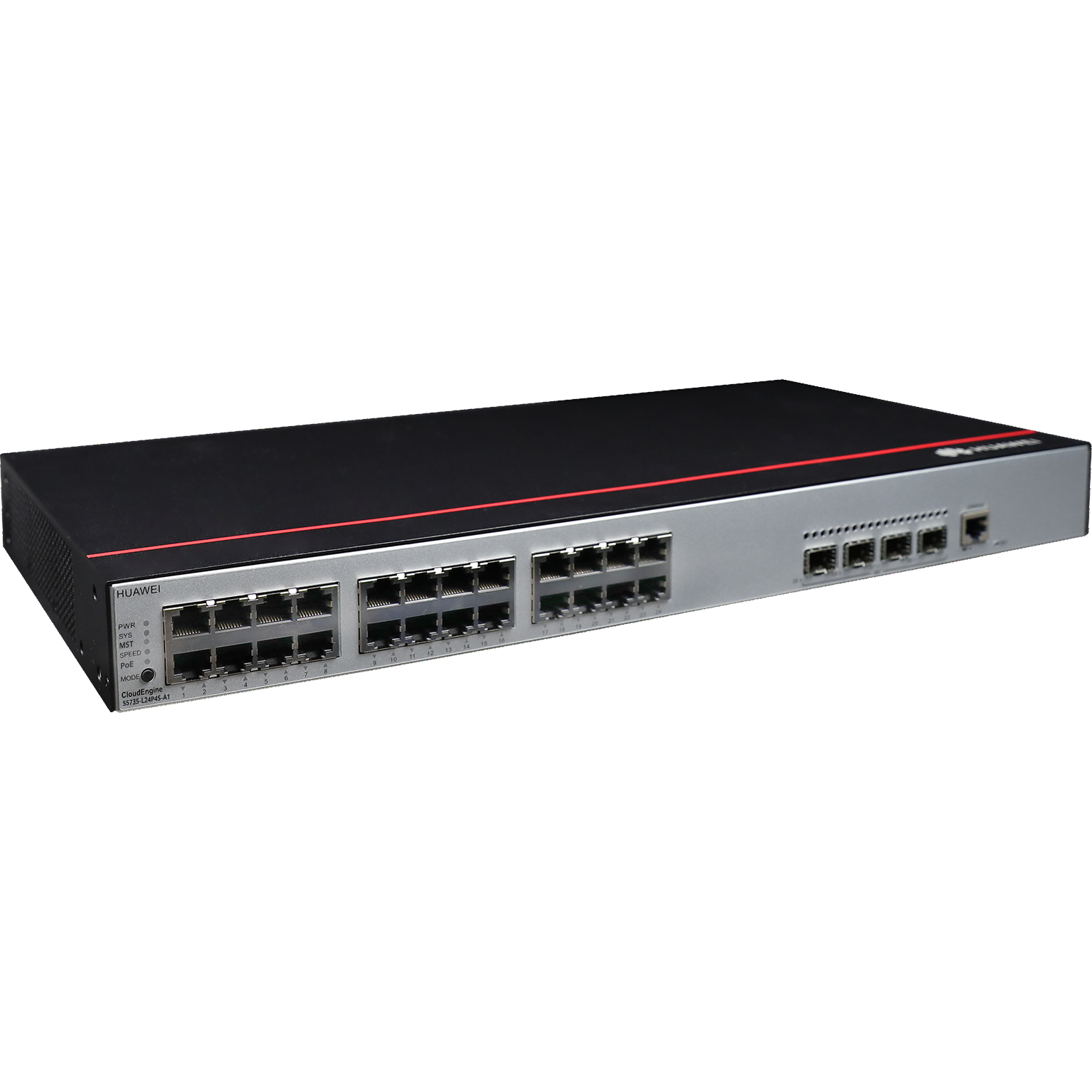

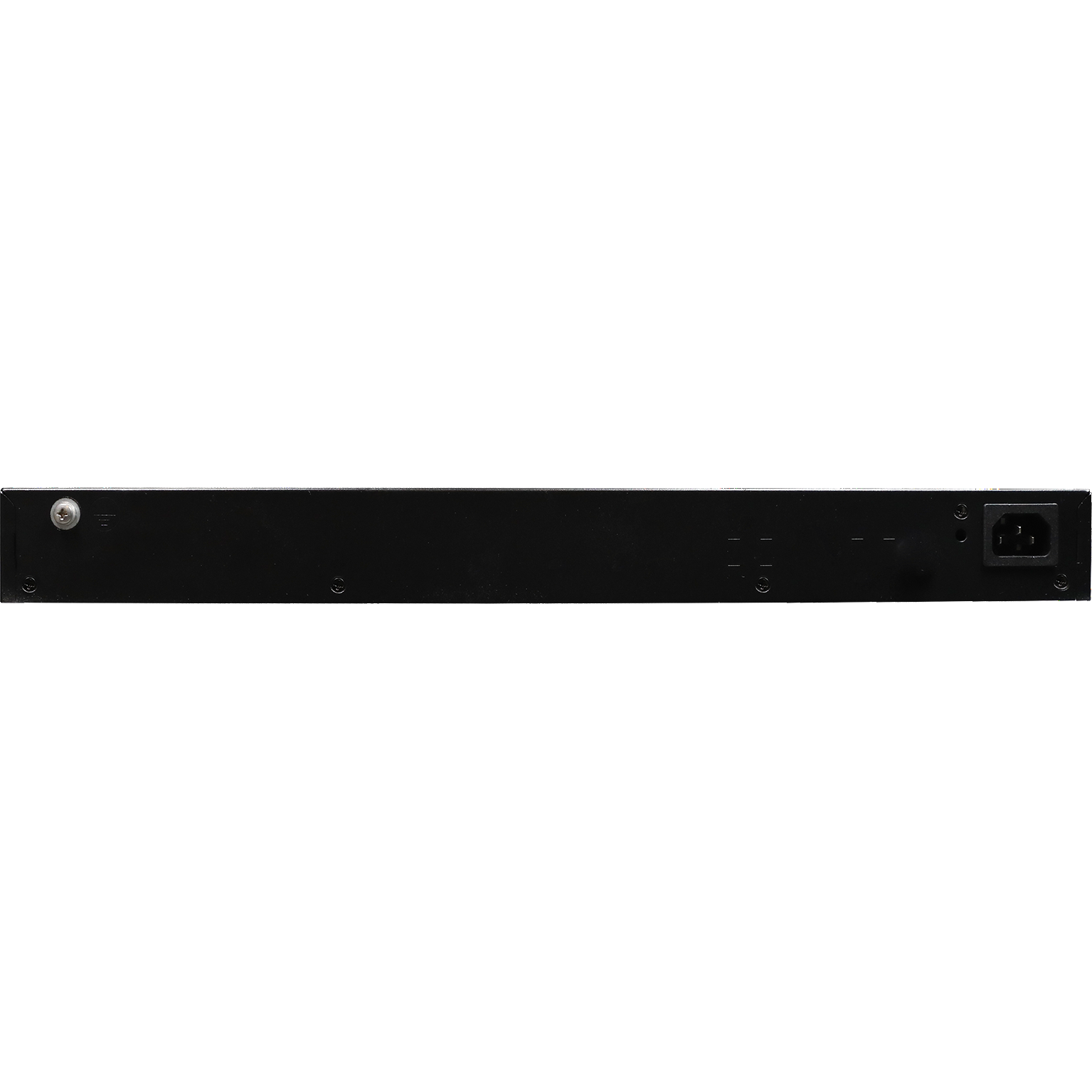

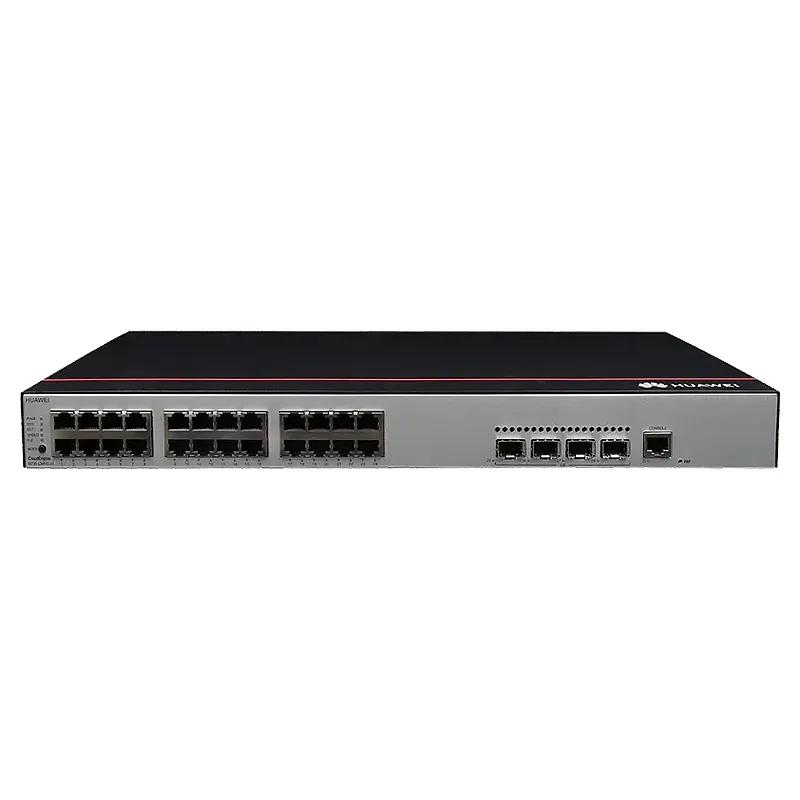

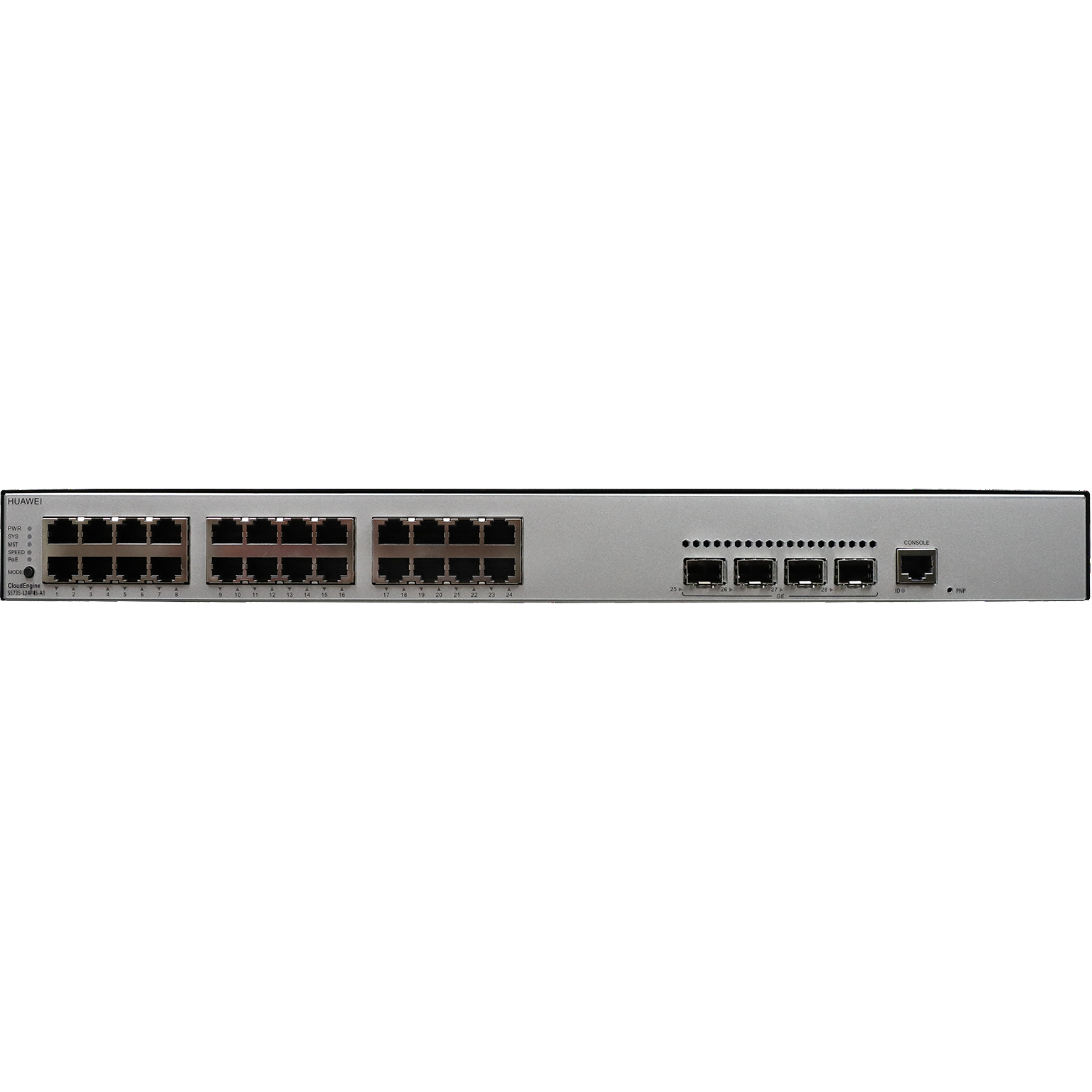

Huawei S5735-L24P4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
