PN | 02353AHU |
---|---|
Model | S5731-S24T4X |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
Height [mm] | 43.6 mm |
Depth [mm] | 420.0mm |
Wide [mm] | 442.0mm |
Chassis height [U] | 1 |
Weight with packaging | 8.4 (18.52) |
Weight without packaging | 5.28 (11.64) |
Maximum power consumption [W] | 114 |
Typical power consumption [W] | 88 |
Maximum heat dissipation [BTU/h] | 389 |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Typical heat dissipation [BTU/h] | 300.26 |
Power supply mode | Pluggable power supply |
Input voltage range [V] | – AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz, – High-voltage DC input: 190 V DC to 290 V DC, BL15 – DC input: ?C38.4 V DC to ?C72 V DC |
Rated input voltage [V] | – AC input: 100?C240 V AC; 50/60 Hz – High-voltage DC input: 240 V DC – DC input: ?C48 V DC to ?C60 V DC |
Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
Number of power slots | 2 |
Number of card slots | 0 |
Memory | 2 GB |
Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together. |
Types of fans | Pluggable |
Noise at normal temperature (acoustic pressure) | 47.5 |
Noise at normal temperature (acoustic power) | 57.5 |
Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
Long-term operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40??C to +70??C (-40??F to +158??F) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
Storage altitude | 0-5000 m (0-16404 ft.) |
Long-term operating altitude | 0-5000 m (0-16404 ft.) |
MTBF [year] | 57.73 |
MTTR [h] | 2 |
Availability | >0.99999 |
10GE optical interface | 4 |
1000M electrical interface | 24 |
USB | Supported |
Console port | RJ45 |
Eth Management port | RJ45 |
Service port surge protection | Common mode: ??6 kV |
Power supply surge protection | – Configured with AC power modules: ??6 kV in differential mode and ??6 kV in common mode, – Configured with DC power modules: ??2 kV in differential mode and ??4 kV in common mode |
RPS input | Not supported |
PoE | Not supported |

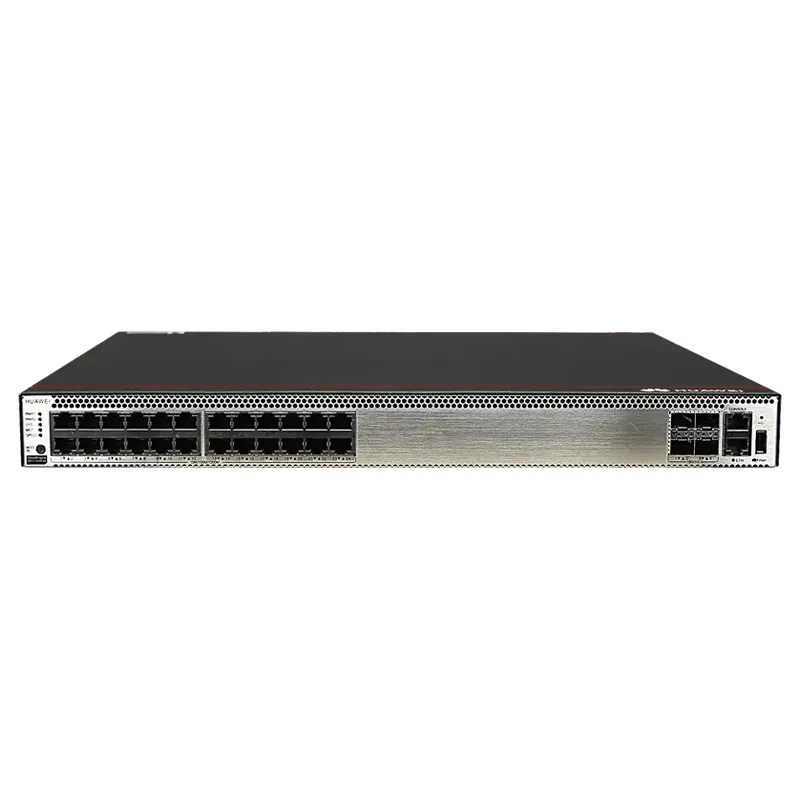

Huawei S5731-S24T4X (24*10/100/1000BASE-T ports,4*10GE SFP+ ports,without power module)
