Additional information
| Weight (with packaging) | 8.6 kg (18.96 lb) |
|---|---|
| Power supply surge protection | Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Mean time between failures (MTBF) | 57.21 years |
| Flash | 1 GB in total. To view the available flash memory size, run thedisplay versioncommand. |
| Warranty | 1 Year |
| Operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Height [mm] | 43.6 mm |
| Relative humidity | 5% to 95%, noncondensing |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W (without card) |
| RPS | Not supported |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Noise under normal temperature (27C, sound power) | < 62.3 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 420.0mm |
| RTC | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Mean time to repair (MTTR) | 2 hours |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Brand | Huawei |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 121 W (without card), 100% PoE loads: 977 W (PoE: 720 W, without card) |
| PoE | Supported |
| Products Status | New |
| Memory (RAM) | 4 GB |
| Service port surge protection | Common mode: 6 kV |
| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| PN | 02352QPV |
| Certification | EMC certification, Safety certification, Manufacturing certification |

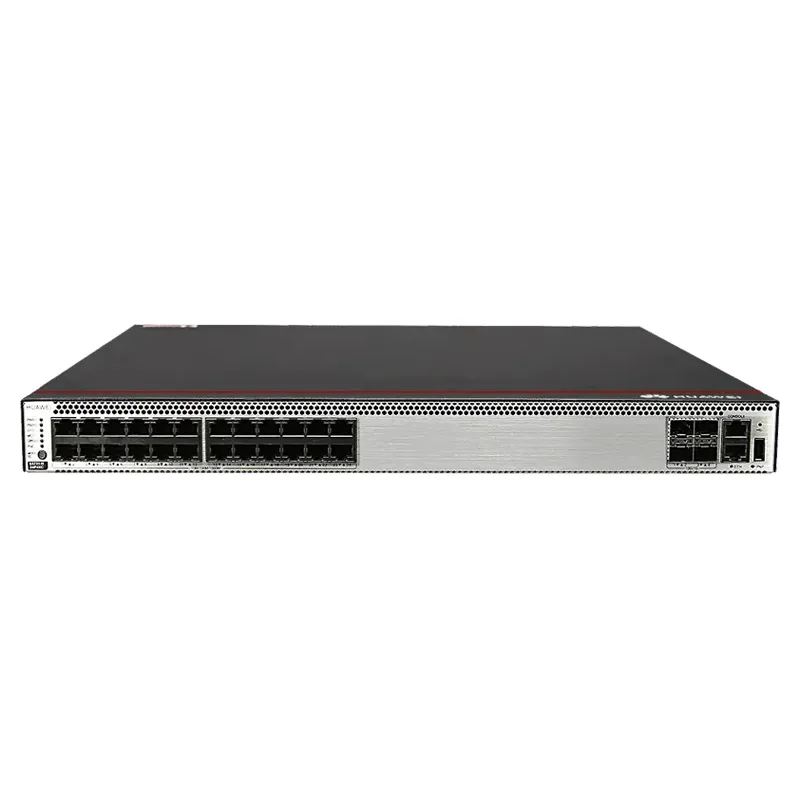

| Model | S5731-H24P4XC |
| Chassis height [U] | 1 |
| Wide [mm] | 442.0mm |
