Additional information
| Weight (with packaging) | 3 kg (6.62 lb) |
|---|---|
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 220.0 mm (1.72 in. x 12.6 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 228.3 mm (1.72 in. x 12.6 in. x 8.99 in.) |
| Mean time between failures (MTBF) | 23.8 years |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Warranty | 1 Year |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 14.57 W |
| Operating temperature | 0C to 45C (32F to 113F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The operating temperature of the switch is 0C to 40C (32F to 104F) when it uses GE SFP optical modules with 40 km transmission distance. |
| Relative humidity | 5% to 95%, noncondensing |
| RPS | Not supported |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Noise under normal temperature (27C, sound power) | Noise-free (no fans) |
| Availability | > 0.99999 |
| RTC | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Mean time to repair (MTTR) | 2 hours |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Brand | Huawei |
| PoE | Supported |
| Products Status | New |
| Memory (RAM) | 512 MB |
| Service port surge protection | Common mode: 7 kV |
| Stack ports | Eight 10/100/1000BASE-T ports and two 1000BASE-X ports |
| PN | 98010570 |
| Certification | EMC certification, Safety certification, Manufacturing certification |

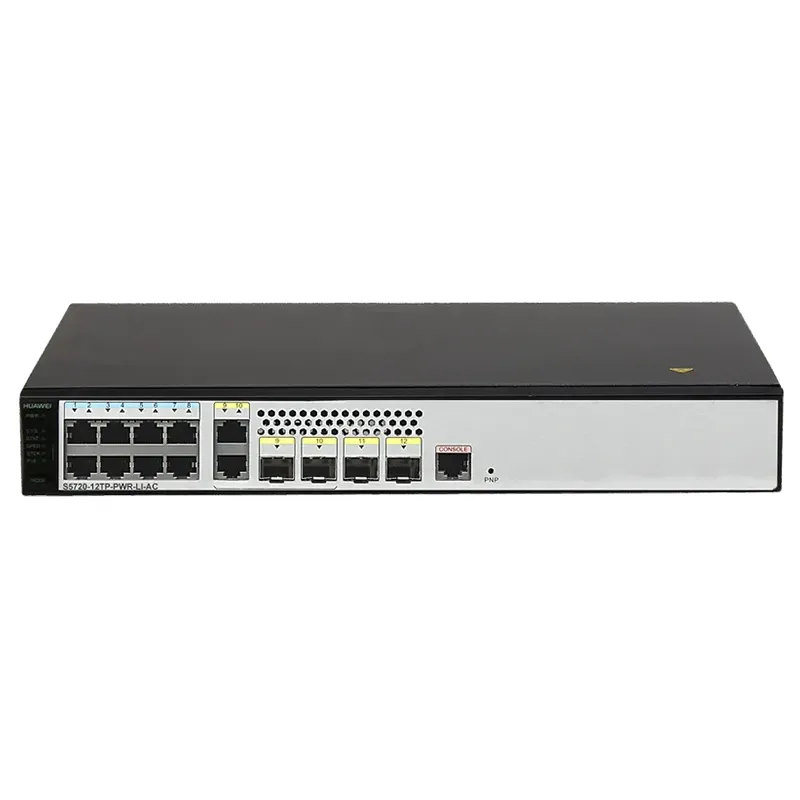

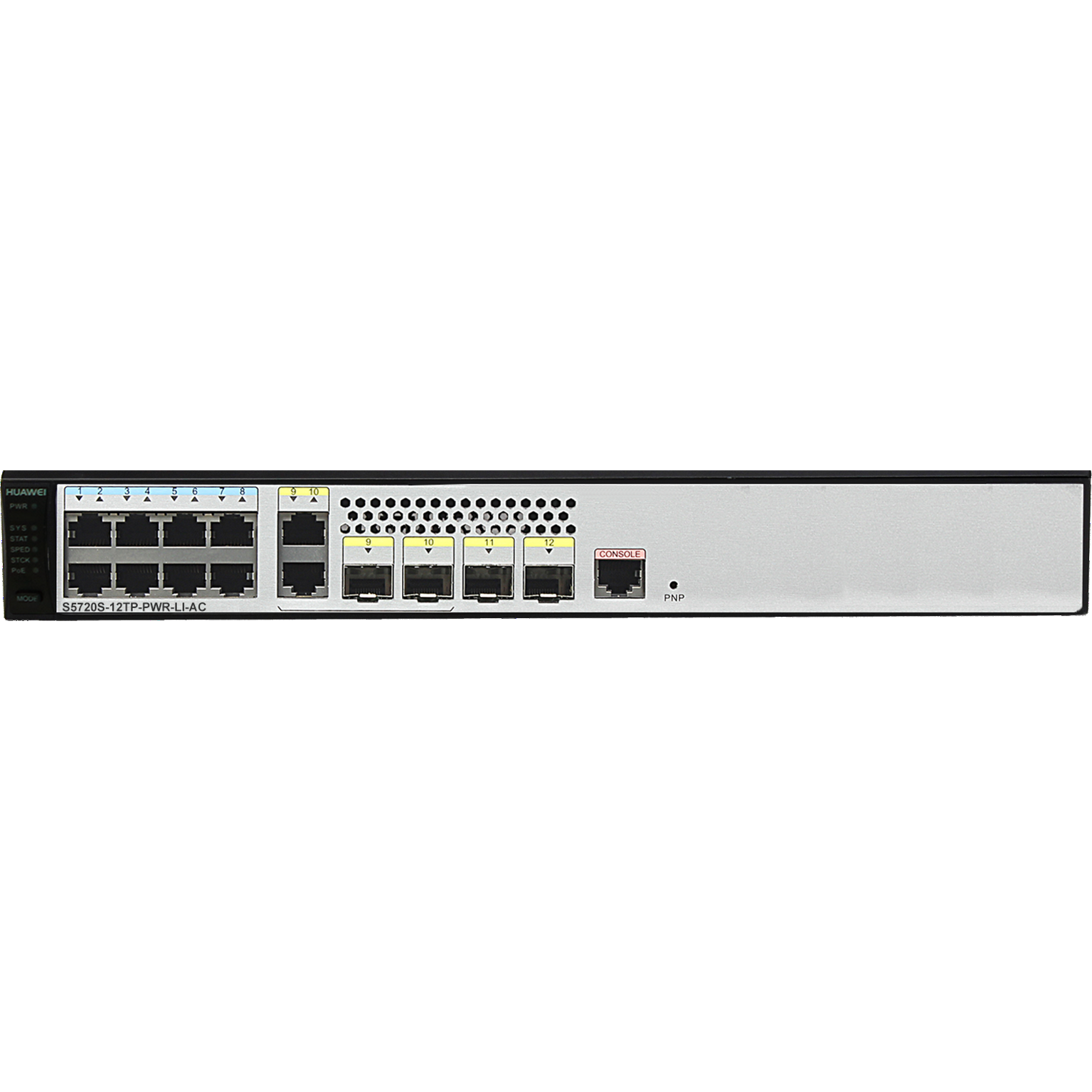

| Model | S5720-12TP-PWR-LI-AC |
| Maximum power consumption (100% throughput) | Not providing the PoE function: 15.61 W, 100% PoE loads: 160.5 W (system power consumption: 37.3 W, PoE: 123.2 W) |
