Additional information
| Power supply surge protection | 2 kV in differential mode, 4 kV in common mode |
|---|---|
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Mean time between failures (MTBF) | 50.4 years when a 2-port 10GE interface card is configured, 68.6 years when a 4-port GE front card is configured, 35.58 years when a 4x10GE front card is configured |
| Flash | 32 MB |
| Warranty | 1 Year |
| Operating temperature | 0C to 50C (32F to 122F) |
| Height [mm] | 43.6 mm |
| Relative humidity | 5% to 95%, noncondensing |
| RPS | Not supported |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Noise under normal temperature (27C, sound power) | < 45 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 420.0mm |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Mean time to repair (MTTR) | 2 hours |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Brand | Huawei |
| Stack port | Two stack ports available on each stack card |
| PoE | Supported |
| Products Status | New |
| Memory (RAM) | 256 MB |
| Service port surge protection | Common mode: 1 kV |
| Weight | Empty: 5 kg (11.02 lb), Fully configured: 8.5 kg (18.74 lb) |
| PN | 2354135 |
| Certification | EMC certification, Safety certification, Manufacturing certification |

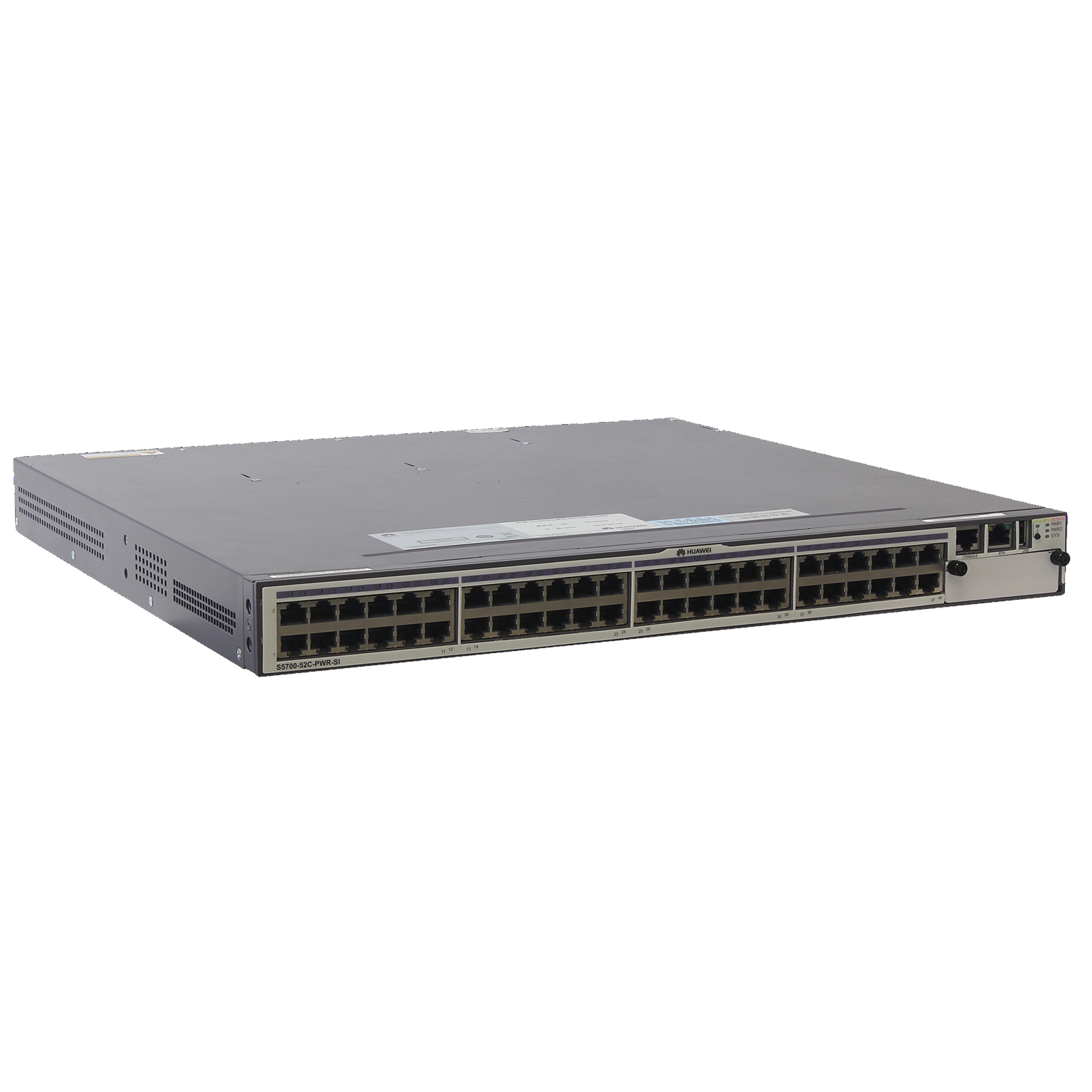

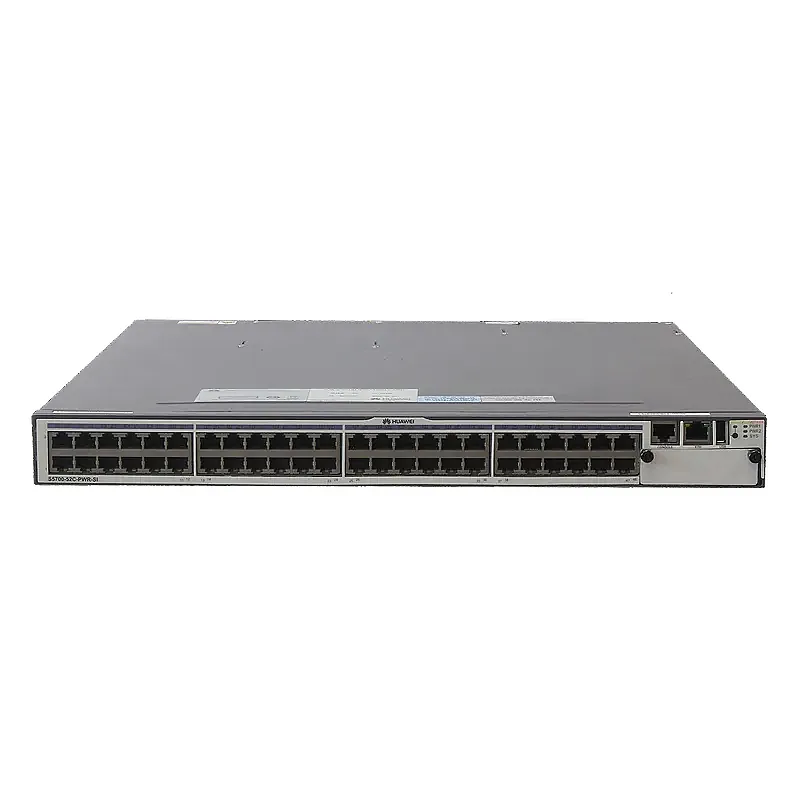

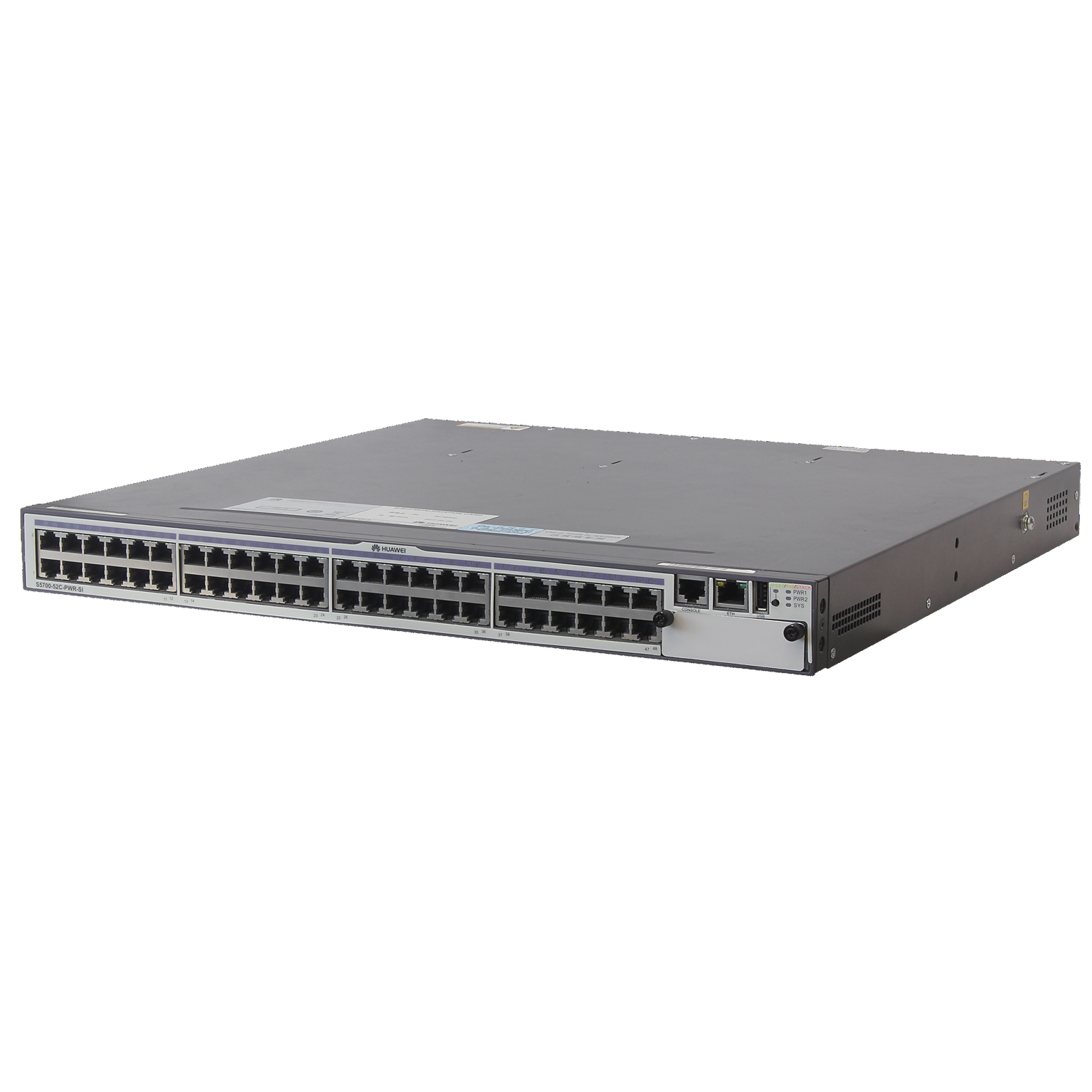

| Model | S5700-52C-PWR-SI |
| Wide [mm] | 442.0mm |
| Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) | 917 W (system power consumption: 177 W, PoE: 740 W) |
