Additional information
| Weight (with packaging) | 3.3 kg (7.28 lb) |
|---|---|
| Power supply surge protection | 1 kV in differential mode, 2 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
| Mean time between failures (MTBF) | 68.95 years |
| Flash | 200 MB |
| Warranty | 1 Year |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 30.7 W |
| Operating temperature | 0C to 50C (32F to 122F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). |
| Height [mm] | 43.6 mm |
| Relative humidity | 5% to 95%, noncondensing |
| RPS | Supported |
| Operating altitude | 0-2000 m (0-6562 ft.) |
| Noise under normal temperature (27C, sound power) | < 44.9 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 220.0mm |
| RTC | Supported |
| Rated voltage range | -48 V DC to -60 V DC |
| Mean time to repair (MTTR) | 2 hours |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | -36 V DC to -72 V DC |
| Brand | Huawei |
| Maximum power consumption (100% throughput, full speed of fans) | 42 W |
| PoE | Not supported |
| Products Status | New |
| Memory (RAM) | 256 MB |
| Service port surge protection | Common mode: 6 kV |
| Stack ports | Four uplink 10GE SFP+ ports |
| PN | 2354234 |
| Certification | EMC certification, Safety certification, Manufacturing certification |

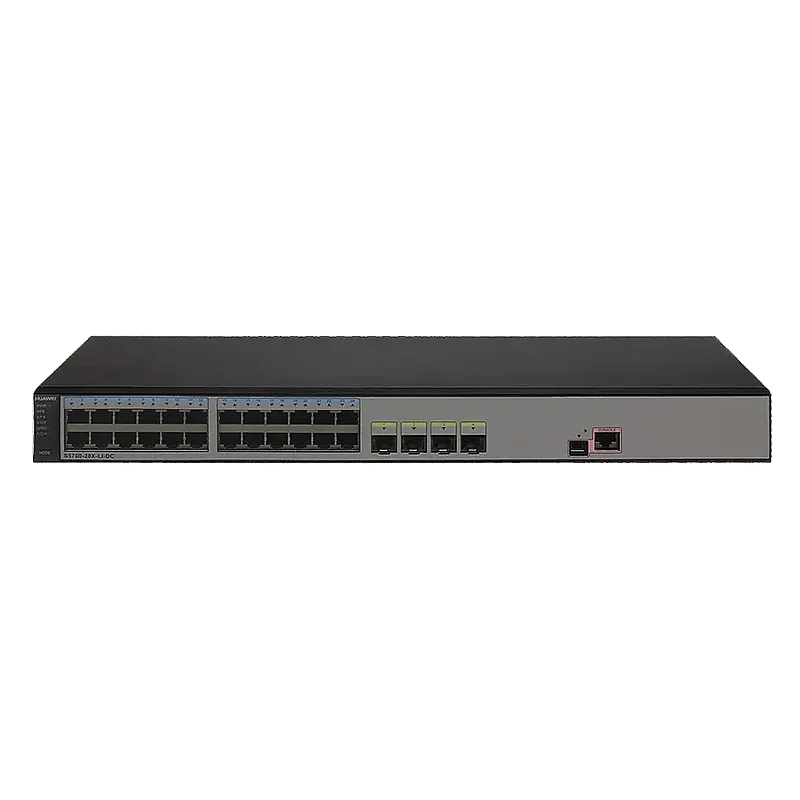

| Model | S5700-28X-LI-DC |
| Wide [mm] | 442.0mm |
