Additional information
| Power supply surge protection | Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 1 kV in differential mode, 2 kV in common mode |
|---|---|
| Dimensions (H x W x D) | 44.4 mm x 442.0 mm x 220.0 mm (1.75 in. x 17.4 in. x 8.7 in.) |
| Mean time between failures (MTBF) | 28.7 years when a 4-port 10GE interface card is configured, 41.1 years when a 2-port 10GE interface card is configured, 42.9 years when a 4-port GE interface card is configured |
| Flash | 64 MB |
| Warranty | 1 Year |
| Operating temperature | -5C to +55C (23F to 131F), NOTE: The operating temperature of the switch is -5C to +50C (23F to 122F) when it uses SFP+ optical modules with 40 km or longer transmission distances. |
| Height [mm] | 44.4 mm |
| Relative humidity | 5% to 95%, noncondensing |
| RPS | Not supported |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Noise under normal temperature (27C, sound power) | < 60 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 220.0mm |
| Rated voltage range | -48 V DC to -60 V DC, 100 V AC to 240 V AC, 50/60 Hz |
| Mean time to repair (MTTR) | 2 years |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Brand | Huawei |
| Maximum power consumption (100% throughput, full speed of fans) | 76.6 W |
| PoE | Not supported |
| Products Status | New |
| Memory (RAM) | 512 MB |
| Service port surge protection | 2 kV in common mode |
| Weight | Empty: 5 kg (11.02 lb), Fully configured: 6.5 kg (14.33 lb) |
| Stack ports | Versions earlier than V200R003C00 do not support stack ports. Since V200R003C00, 10GE ports on the front card can be used as stack ports. |
| PN | 2353630 |
| Certification | EMC certification, Safety certification, Manufacturing certification |

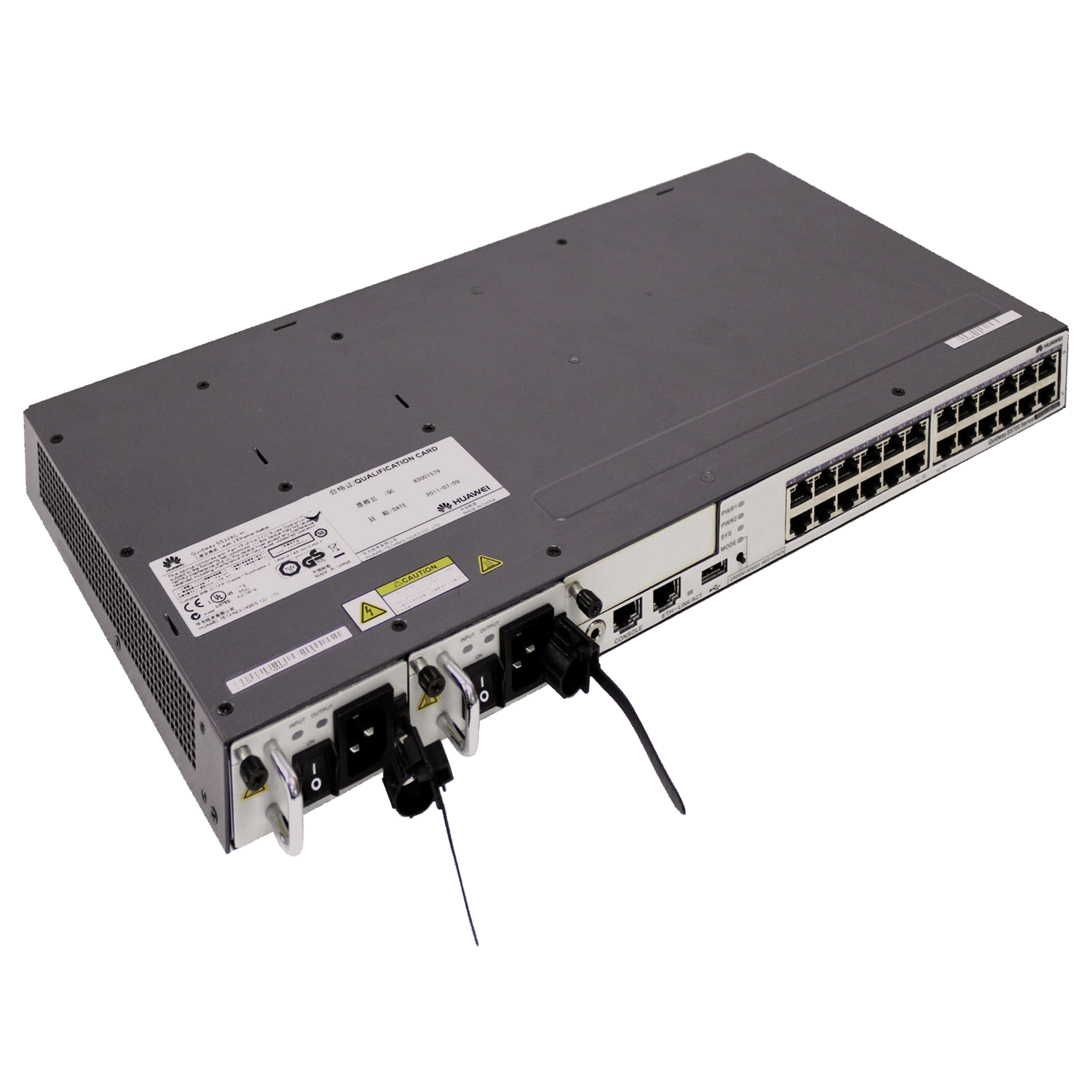

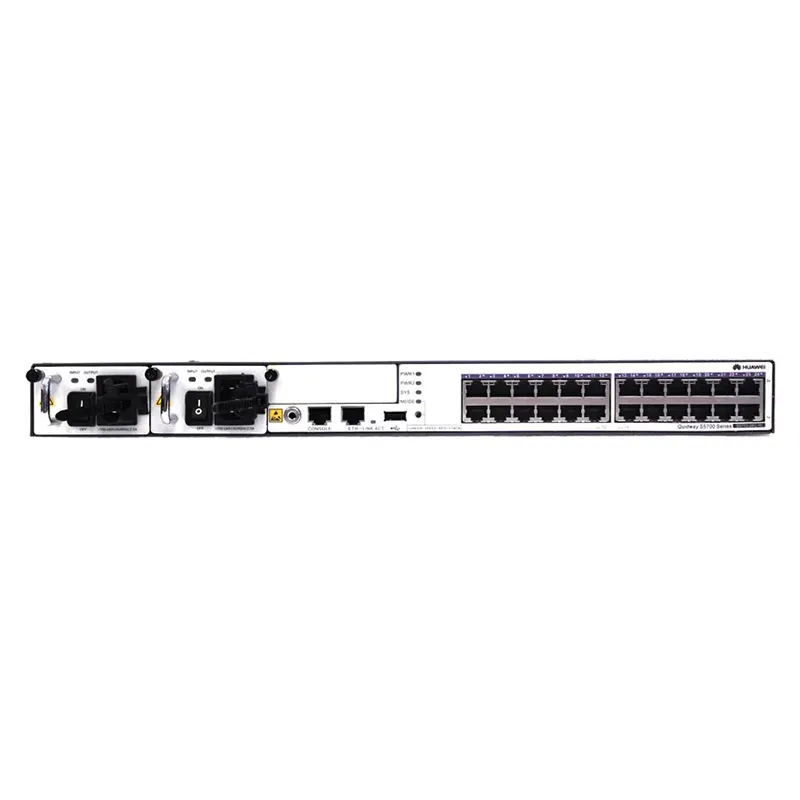

| Model | S5700-28C-HI |
| Wide [mm] | 442.0mm |
