Additional information

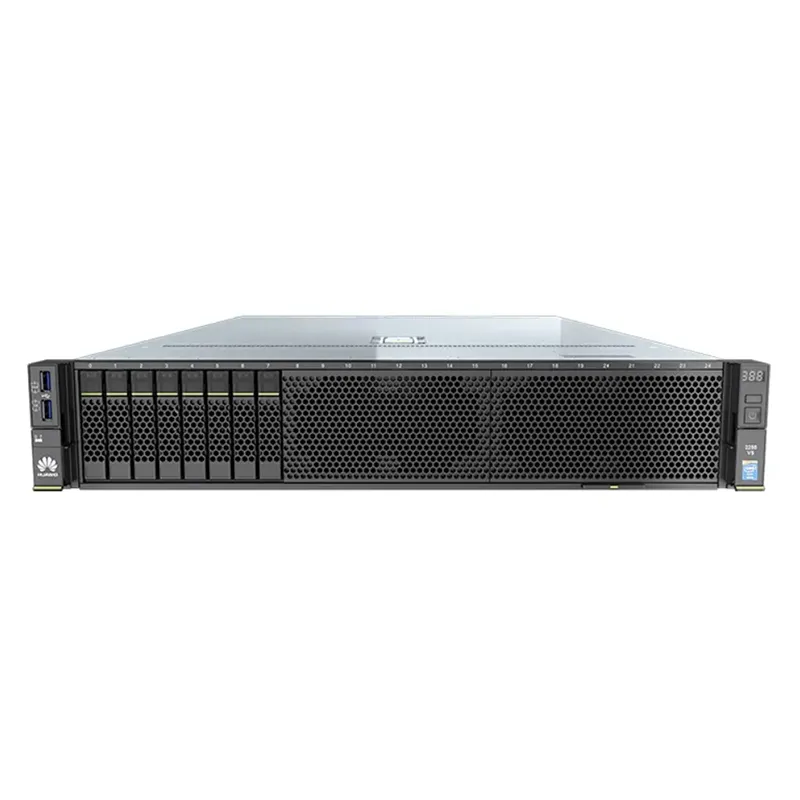

| Model | FusionServer 2288H V5 |
|---|---|
| Form Factor | 2U, 2-socket rack server |
| Processors | 1 or 2 full-series Intel Xeon Scalable Processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s |
| Internal Storage | Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for power-off protection for the cache (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) interfaces |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |
| Fan Modules | 4 hot-swappable counter-rotating fan modules with optional N+1 redundancy |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1): 550W AC Platinum PSUs, 900W AC Platinum/Titanium PSUs, 1,500W AC Platinum PSUs, 1,500W 380V HVDC PSUs, 1,200W -48V to -60V DC PSUs |
| Operating Temperature | 5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.) |
