Description

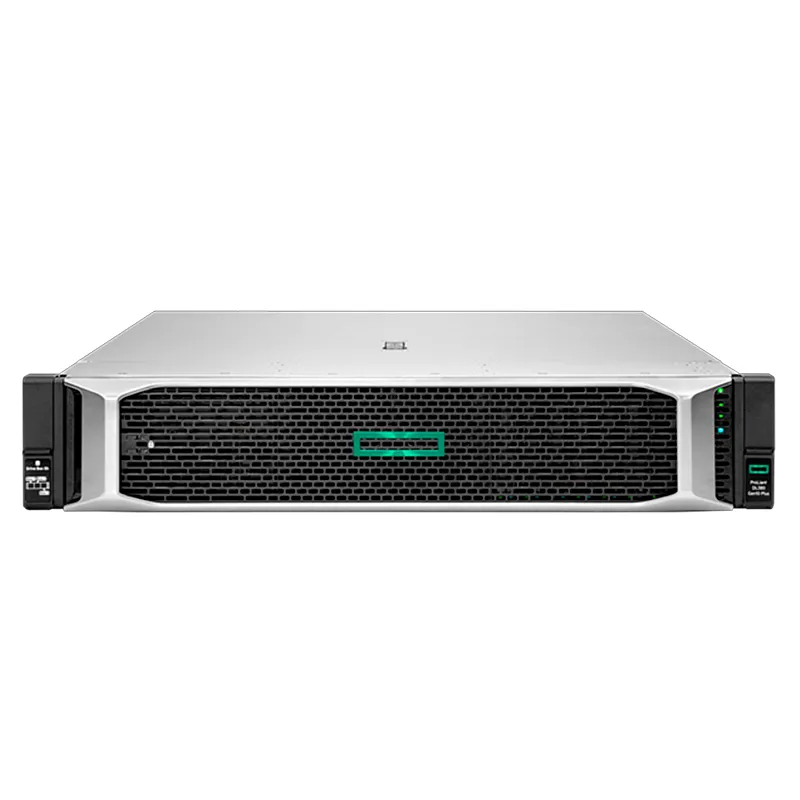

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability.

Features

Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

Performance

The 3rd generation Intel Xeon Scalable processors require a different socket than the previous 1st and 2nd generation, which explains the lack of compatibility with the previous generations. However, this 3rd generation includes more cores across the various families with Platinum supporting up to 40 cores, Gold up to 32 cores, and Silver processors delivering up to 20 cores. PCIe 4.0 is now supported with CPUs delivering 64 PCIe lanes each, for 128 PCIe 4.0 lanes in a dual processor configuration. Memory density has also increased with 8x memory channels, up from the previous count of only 6x memory channels on previous generations. Faster memory is also supported at up to 3200MT/s.

HPE ProLiant DL380 Gen10 Plus Server – Specifications

Processors

• Up to 2 of the following depending on model.
• The 2nd digit of the processor model number “x3xx” is used to denote the processor generation (i.e. 3=3rd generation Intel Scalable Series Processors)

Chassis Types

• 8SFF (SAS/SATA) with optional SFF Universal Media Bay (P14609-B21), 8SFF midtray, and/or up to 6SFF rear drive bay options.
• 24SFF bay (SAS/SATA) with optional 8SFF mid tray drives and/or up to 6SFF rear drive bay options to a total 38 SFF drives.
• 8LFF with Universal Media Bay (standard), supporting 2SFF front, optional 8SFF mid tray or 4LFF mid tray, and up to 4LFF rear or 6SFF rear drive bay options.
• 12LFF with optional 4LFF mid tray and up to 4LFF rear for a total 20LFF drives.

MEMORY

• 32 x DIMM slots
• 8.1 TB – RDIMM (4 TB per processor)
• 11.2 TB – LRDIMM and Intel Optane (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane)
• Optional: Intel® Optane™ Persistent Memory for HPE
• Capacity: 128GB – 512GB

DRIVE BAYS

• 8 or 12 x LFF SAS/SATA/SSD
• 8, 10, 16, 18 or 24 x SFF SAS/SATA/SSD
• 2 M.2 SATA SSD standard on primary riser
• 8 x SFF mid-tray
• 6 x SFF rear drive optional
• 4 x LFF mid tray optional
• 3 x LFF rear-drive optional
• 2 SFF or 2 Dual UFF rear-drive optional
• 20 x SFF NVMe optional
