Key Features :

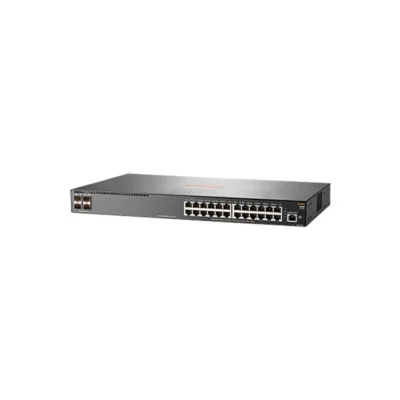

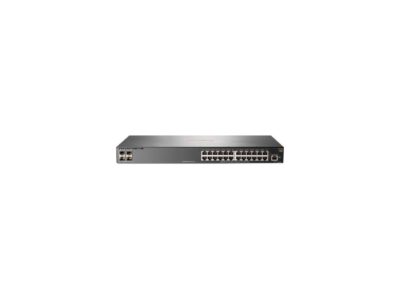

- Device Type : Switch – 24 Ports – L3 – Managed – Stackable
- Enclosure Type : Rack-mountable – 1u
- Subtype : Gigabit Ethernet
- Ports : 24 X 10/100/1000 + 4 X Gigabit Sfp (uplink)
- Performance : Throughput : 41.7 Mpps
- Switching Capacity : 56 Gbps
- Latency (1 Gbps) : 3.8 ??s
- Capacity : Jumbo Frame Size : 9220 | Ipv4 Routing Table Entries : 10000 | Ipv6 Routing Table Entries : 5000
- Mac Address Table Size : 32k Entries
- Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
- Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
- Encryption Algorithm : Md5, Ssl
- Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
- Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii
- Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
- Processor : 1 X Arm Cortex-a9 : 1.016 Ghz
- Ram : 1 Gb – Ddr3 Sdram
- Flash Memory : 4 GbExpansion / Connectivity :
Interfaces : - 24 X 1000base-t – Rj-45
- 4 X Gigabit Lan – Sfp
- 1 X Serial (console)Expansion Slots :
- 1 (total) / 1 (free) X Expansion Slot
- Installed Modules Qty (max) : 0 (installed) / 4 (max)Power :
- Power Device : Internal Power Supply
- Installed Qty : 1
- Voltage Required : Ac 120 V
- Power Consumption Operational : 29.3 Watt
