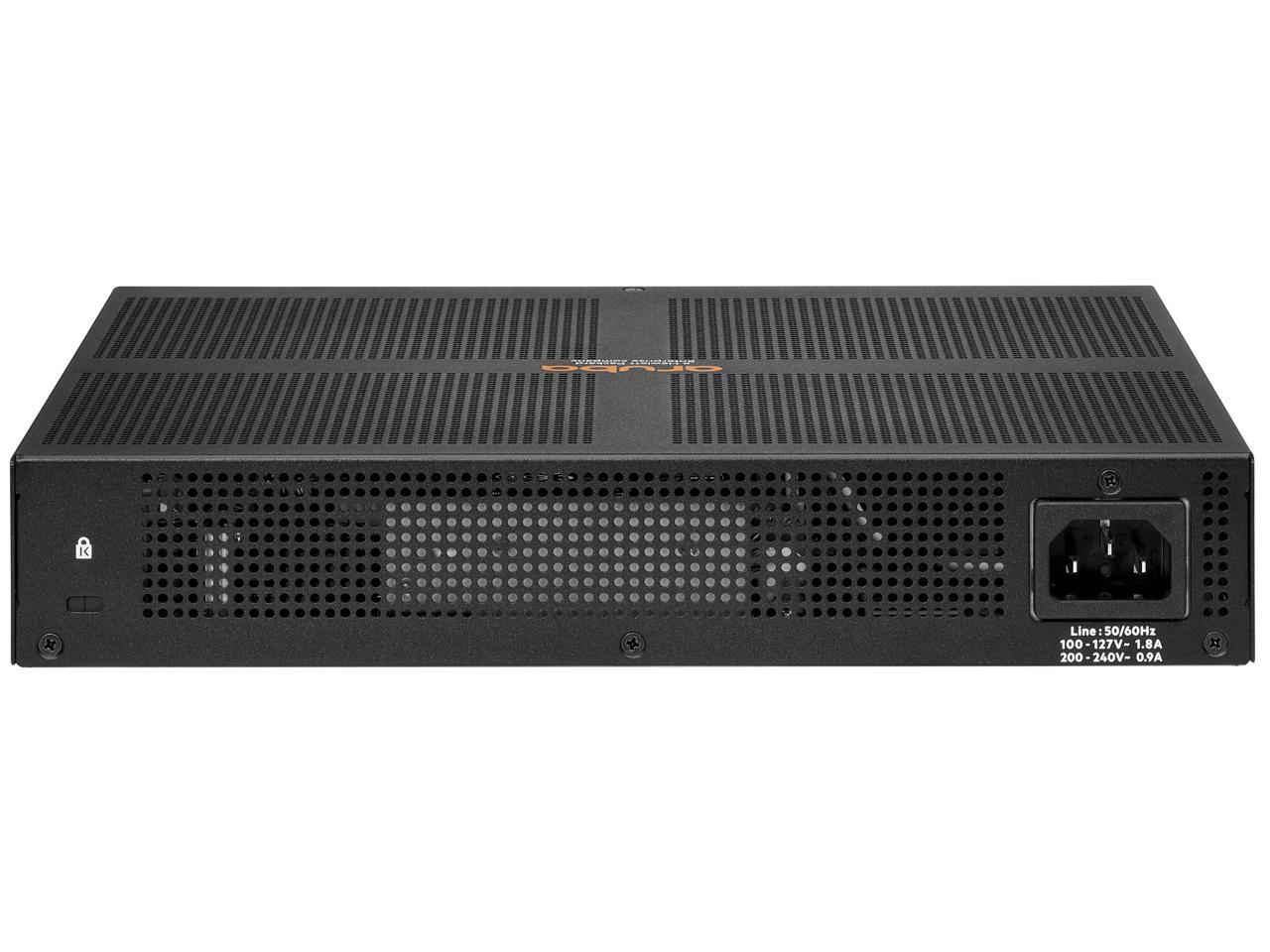

HPE Aruba CX 6000 R8N89A#ABA Aruba CX 6000 12G Class4 PoE 2G/2SFP 139W Switch

Key Features :

Device Type : Switch – 12 Ports – Managed – Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp + 2 X 1000base-t
Power Over Ethernet (poe) : Poe
Poe Budget : 139 W
Performance : Packet Buffer Size: 12.38 Mb | Throughput: 23.8 Mpps | Switching Capacity: 32 Gbps | Latency (1 Gbps): 2.3 Microseconds | Latency (10 Gbps): 2.6 Microseconds
Capacity : Switched Virtual Interfaces (svis): 16 | Arp Entries: 1024 | Ipv4 Routes (unicast): 512 | Ipv6 Routes (unicast): 512 | Igmp Groups: 512 | Mld Groups: 512 | Ipv4 Acl Entries (ingress): 256 | Ipv6 Acl Entries (ingress): 128 | Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Igmpv2, Igmpv3
Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 GbExpansion / Connectivity :
Interfaces:
12 X 10/100/1000 Base-t Rj-45 Poe Class 4 – 139 W
2 X 10gbit Lan Sfp
2 X Gigabit Lan
1 X Usb Type A
1 X Usb-c ConsolePower :
Power Device : Internal Power Supply
Voltage Required : Ac 100-240 V (50/60 Hz)
Power Consumption Operational : 21.9 Watt

Brand	HPE
Series	Aruba CX 6000
Model	R8N89A#ABA
Primary Ports	12 x RJ45 + 2 x SFP
Primary Port Speed	10/100/1000Mbps
Features	The new Aruba CX 6000 Switch Series delivers a simple and convenient Layer 2 access solution ideal for branch offices, midsize businesses, and SMBs looking for cost effective, reliable, and security-enhanced wired access.- Simplify IT operations with next-gen Layer 2 Gigabit Ethernet switch series that provides entry level, reliable and convenient wired access connectivity. – Convenient built-in 1GbE uplinks- Silent deployment with compact and fanless 12 port PoE model.- Flexibility to manage and simplify configs with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.- Software defined ready with REST APIs.- Layer 2 feature set with static routing and no switch software licensing required. – Power cord included1 Aruba Central support in future release.
Dimensions	1.73" x 10.00" x 10.04"
Weight	6.13 lbs.
