* NOTE: Image may not exactly match the product

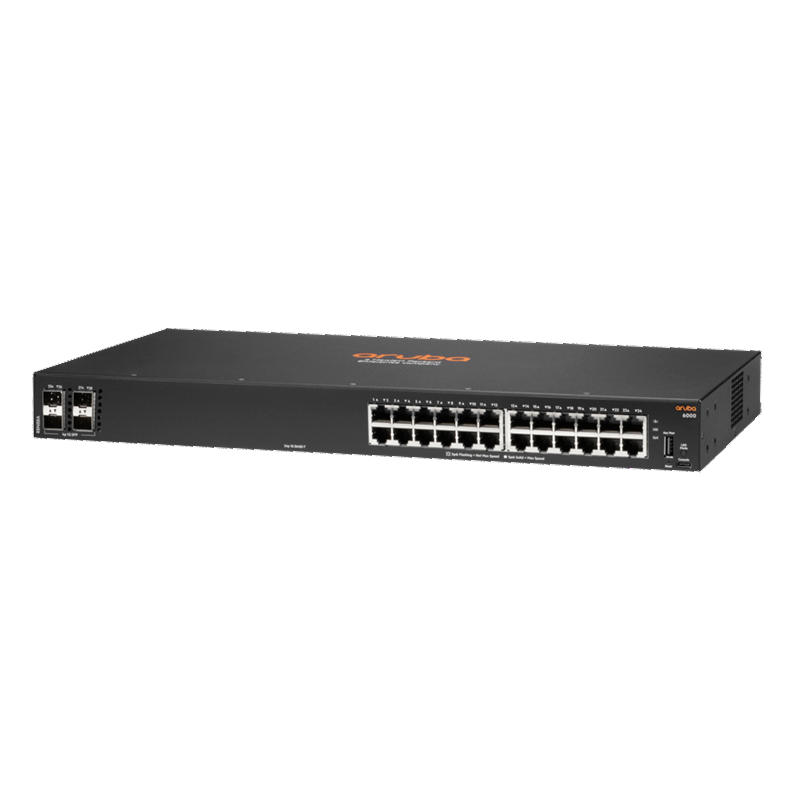

HPE Aruba 6000 R8N88A#ABG Managed 24G 4SFP Switch – Managed – Rack-mountable

$Quote1 Piece(MOQ)

SKU R8N88A#ABG Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Key Features :

  • Device Type : Switch – 24 Ports – L3 – Managed – Stackable
  • Enclosure Type : Side To Side Airflow Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 4 X Gigabit Sfp
  • Performance : Packet Buffer Size: 12.38 Mb Throughput: 41.6 Mpps Switching Capacity: 56 Gbps Latency (1 Gbps): 1.5
  • Capacity : Switched Virtual Interfaces (svis): 16 Arp Entries: 1024 Ipv4 Routes (unicast): 512 Ipv6 Routes (unicast): 512 Igmp Groups: 512 Mld Groups: 512 Ipv4 Acl Entries (ingress): 256 Ipv6 Acl Entries (ingress): 128 Mac Acl Entries (ingress): 256
  • Mac Address Table Size : 8192 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Igmpv2, Igmp, Igmpv3
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3, Snmp 2c, Http, Cli, Icmp, Dhcp, Radius
  • Encryption Algorithm : Ssl
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing, Udp Support, Any Source Multicast (asm)
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3az
  • Processor : 1 X Arm A9: 1.016 Ghz
  • Ram : 4 Gb Ddr3 Sdram
  • Flash Memory : 16 Gb

    Expansion / Connectivity :
    Interfaces :

  • 24 X 10/100/1000 Base-t Rj-45
  • 4 X Gigabit Lan Sfp
  • 1 X Usb Type A 1 X Usb-c Console

    Power :

  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100 – 127 V / 200 – 240 V (50/60 Hz)
  • Power Consumption Operational : 33 Watt
Series

Aruba 6000

Buffer Memory

12.38 MB

Format

Rackmount

Jumbo Frames

9198 bytes

MAC Address Table

8K

Primary Port Speed

10/100/1000Mbps

Network Management Type

Managed

Humidity

15% – 95%, Non-condensing

Power

AC 100 – 127 V / 200 – 240 V (50/60 Hz)

Brand

HPE

Primary Ports

24 x RJ45 + 4 x SFP

Model

R8N88A#ABG
