PN | 98010509 |
---|---|
Model | S5700-28P-LI-BAT |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
Height [mm] | 43.6 mm |
Depth [mm] | 310.0mm |
Wide [mm] | 442.0mm |
Memory (RAM) | 256 MB |
Flash | 200 MB |
Mean time between failures (MTBF) | 57.9 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ??6 kV |
Power supply surge protection | Built-in AC or using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |
Weight (with packaging) | 3.4 kg (7.5 lb) |
Stack ports | Not supported |
RTC | Not supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 23 W |
Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 22.7 W |
Operating temperature | 0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). |
Storage temperature | Pluggable modules not configured: -40??C to +70??C (-40??F to +158??F), Power modules configured: -40??C to +70??C (-40??F to +158??F), Lithium battery modules configured: -20??C to +60??C (-4??F to +140??F), Lead-acid battery modules configured: The storage temperature is determined according to the storage environment of lead-acid batteries. |
Noise under normal temperature (27??C, sound power) | < 43.2 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | DC power modules configured: 0-2000 m (0-6562 ft.), AC power modules or battery modules configured: 0-5000 m (0-16404 ft.) |
Certification | EMC certification, Safety certification, Manufacturing certification |

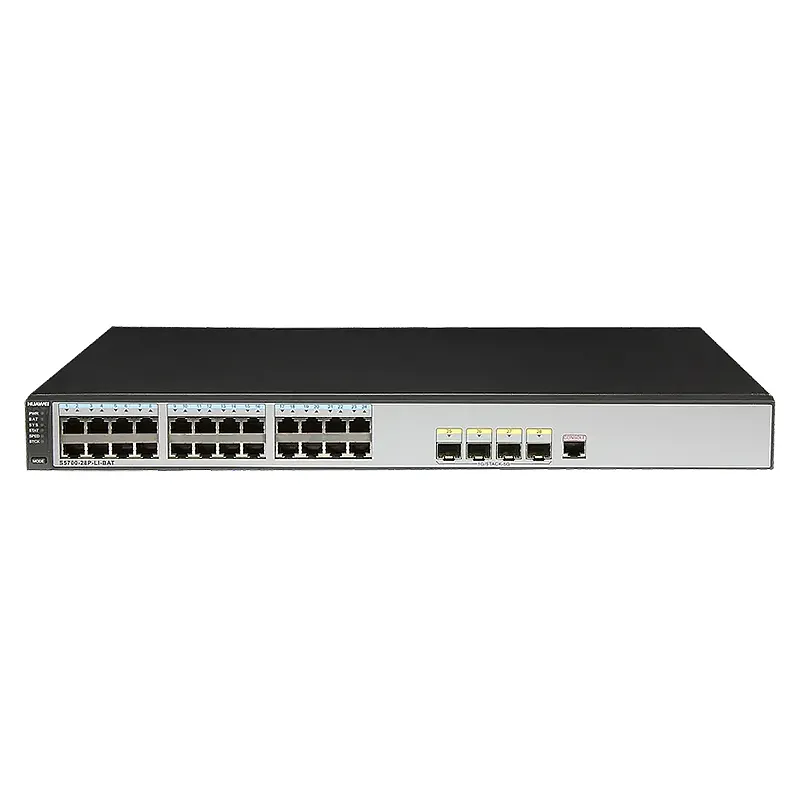

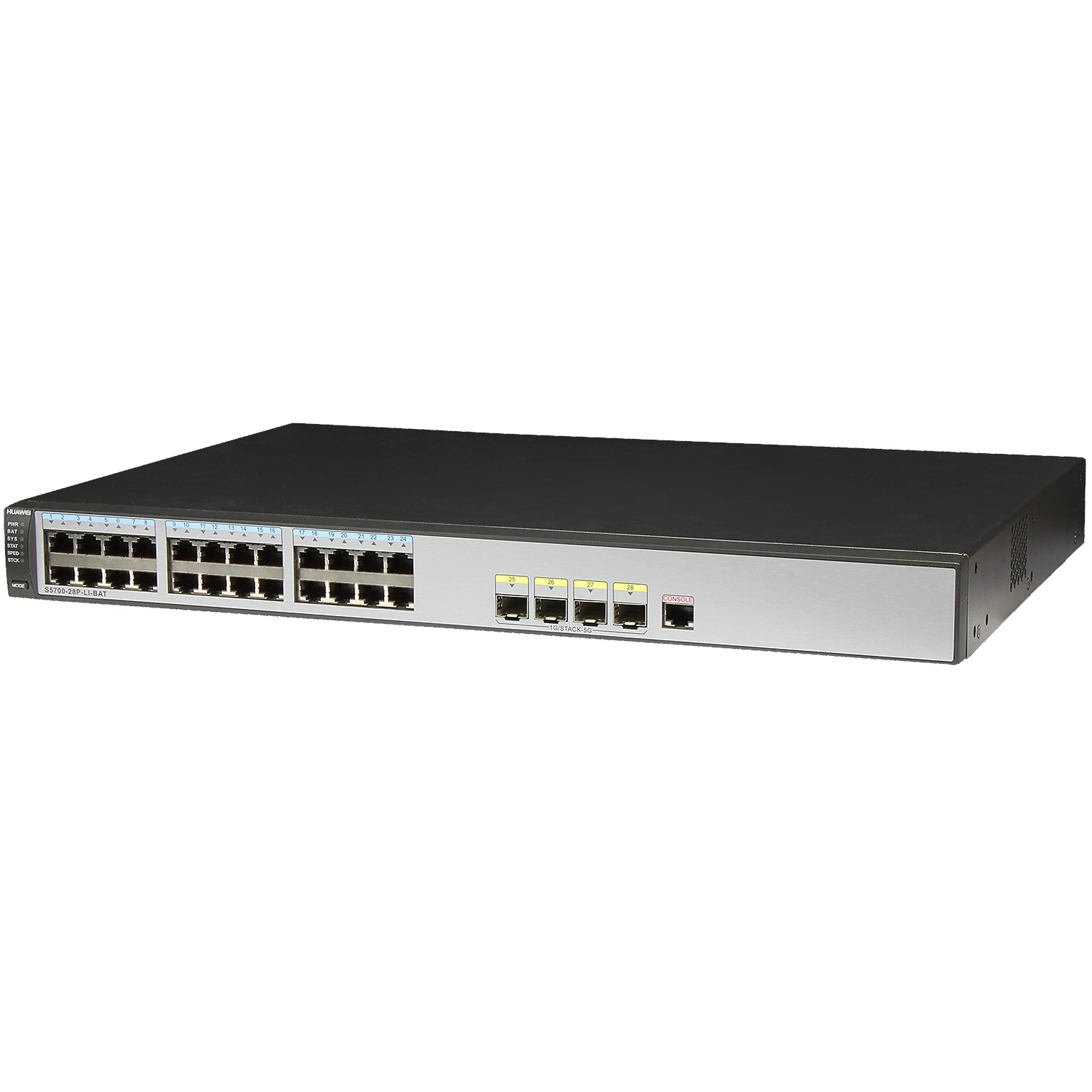

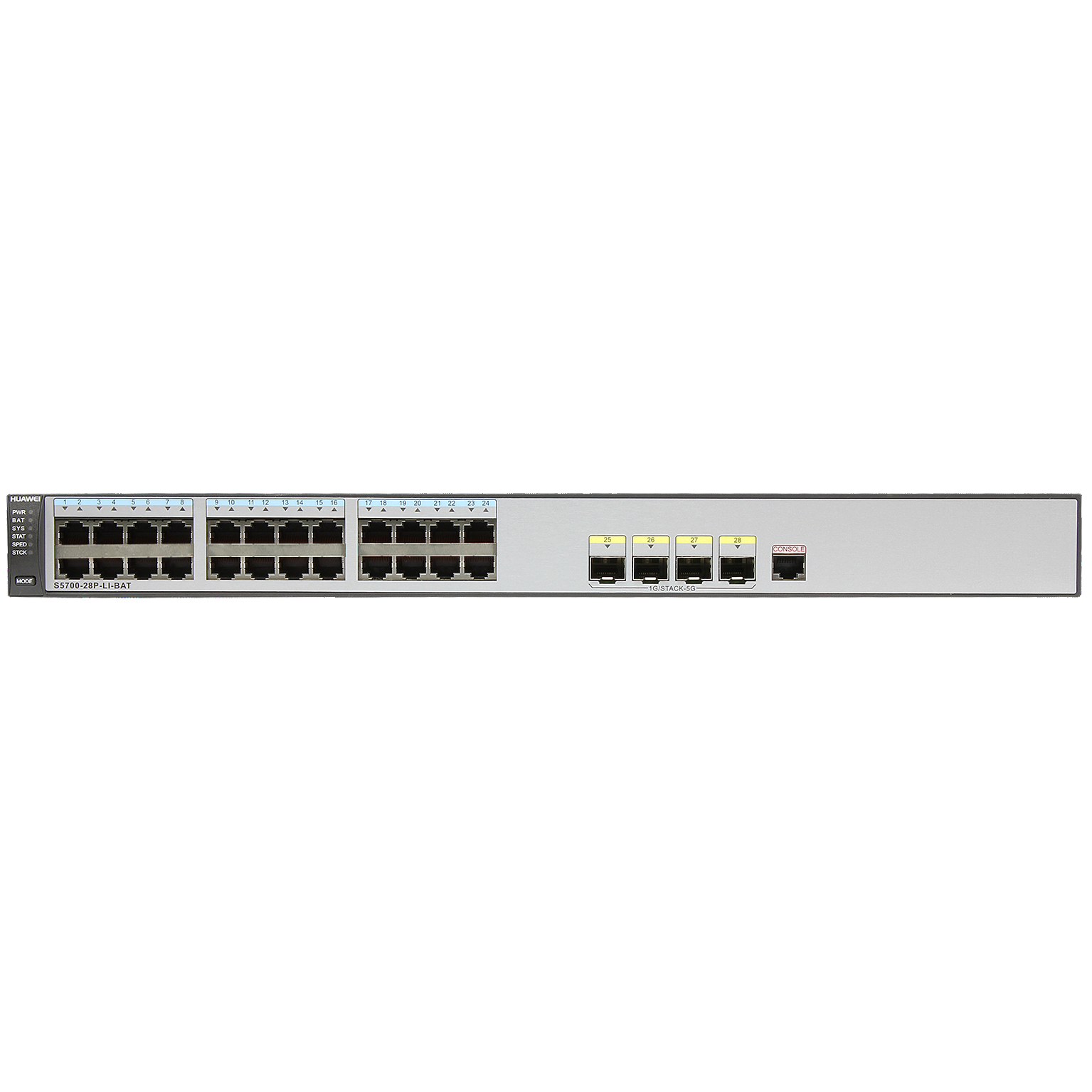

Hawei S5700-28P-LI-BAT(24 Ethernet 10/100/1000 ports,4 Gig SFP,1 slot with battery,AC 110/220V)
