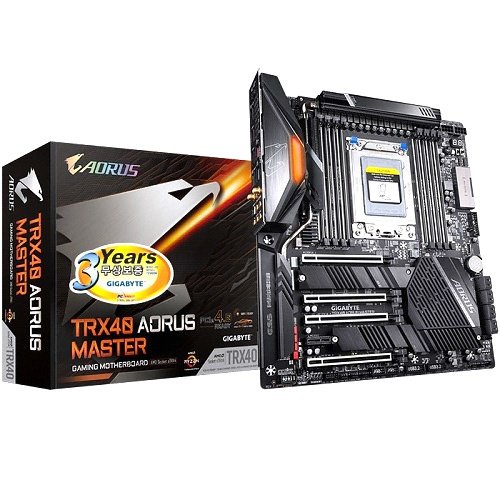

GIGABYTE TRX40 AORUS MASTER

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended Heatsink and NanoCarbon Baseplate
AQUANTIA^® 5GbE LAN and Intel^® GbE LAN with cFosSpeed
3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT 5
130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Front & Rear USB 3.2 Gen 2 Type-C™ Header
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Warranty	1 Year
Chipset	AMD TRX40 Series
CPU Brand	AMD
Memory	8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Quad Channel memory architecture Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Size	30.5cmx26.9cm
Packaging Details	BOX
Product Name	GIGABYTE TRX40AORUSMASTER
Back I/O Ports	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.1 Gen 2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
Brand	GIGABYTE
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x GIGABYTE add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x BIOS switches 2 x temperature sensor headers 1 x Clear CMOS jumper Voltage Measurement Points
Form Factor	E-ATX
CPU Socket Type	AMD sTRX4
USB Ports	4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Integrated in the 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Application	PC
Products Status	New
