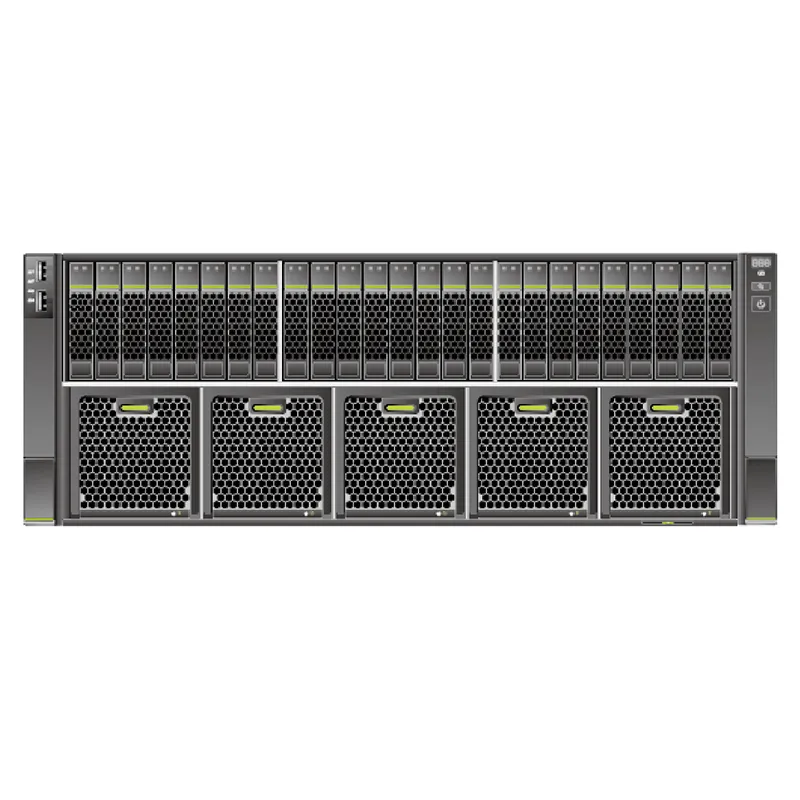

FusionServer 5885H V5 Rack Server

FusionServer 5885H V5 is a 4U, 4-socket rack server. It applies to mission-critical applications that demand high reliability and performance, and is ideal for compute-intensive services, such as virtualization, HPC, and databases. The 4U server can be configured with 48 DDR4 DIMMs , and 25 x 2.5-in. hard drives for local storage and supports a maximum of eight NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT)?and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Model	FusionServer 5885H V5
Form Factor	4U Rack Server
Processors	2 or 4 1st Generation Intel Xeon Scalable processors (5100/6100/8100 series), up to 205 W, 2 or 4 2nd Generation Intel Xeon Scalable processors (5200/6200/8200 series), up to 205 W
Memory	48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel Optane PMem modules (100 series), 2666 MT/s
Internal Storage	Supports hot-swappable hard drives with the following configuration options: 8 x 2.5-inch SA Supports hot-swappable hard drives with the following configuration options: 8 x 2.5-inch SAS/SATA hard drives (front) 24 x 2.5-inch SAS/SATA hard drives (front) 25 x 2.5-inch SAS/SATA hard drives (front) 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front) 24 x 2.5-inch NVMe SSDs (front) Flash storage: Two M.2 SSDs S/SATA hard drives (front) 24 x 2.5-inch SAS/SATA hard drives (front) 25 x 2.5-inch SAS/SATA hard drives (front) 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front) 24 x 2.5-inch NVMe SSDs (front) Flash storage: Two M.2 SSDs
RAID	RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	2 x 10 GE + 2 x GE ports
PCIe Expansion	Up to 15 PCIe slots for 15 PCIe 3.0 slots 2 dual-width full-height full-length GPU cards (PCIe 3.0 x16) or 4 full-height half-length GPU cards (PCIe 3.0 x16)
Fan Modules	5 hot-swappable fan modules with optional N+1 redundancy
Power Supply	4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include: 1,500W AC Platinum PSUs 900W AC PSUs 1,200W DC PSUs
Management	BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management
Operating Temperature	5oC to 45oC (41oF to 113oF) (ASHRAE A3 and A4 compliant)
Certifications	CE, UL, FCC, CCC, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)
