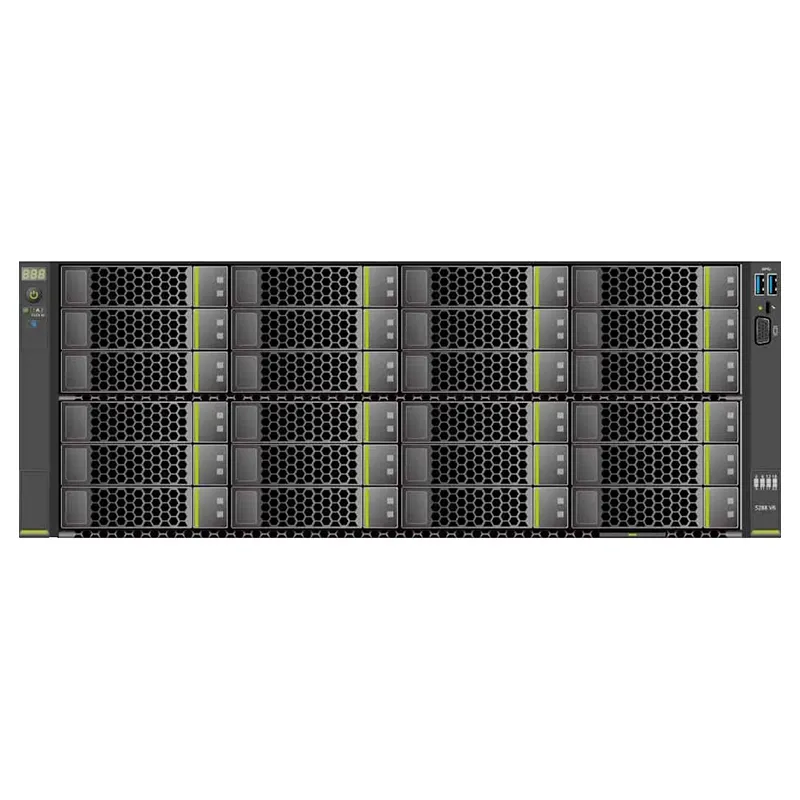

FusionServer 5288 V5 Rack Server

FusionServer 5288 V5 is a 4U, 2-socket rack server, applicable to services such as tiered storage of hot, warm, and cold data, and historical data archiving. With high efficiency design, the server ensures excellent computing performance and provides flexible and ultra-large local storage scalability to reduce data storage costs. The 4U server can be configured with 2 Intel^??Xeon^??Scalable processors, 24 DDR4 DIMMs , and 44 x 3.5-inch plus 4 x 2.5-inch SAS/SATA disks for local storage, the FusionServer 5288 V5 supports a maximum of 8 NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT)?and Fault Diagnosis and Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Model	FusionServer 5288 V5
Form Factor	4U Rack Server
Processors	1 or 2 1st Generation Intel Xeon Scalable processors (3100/4100/5100/6100/8100 series), up to 205W, 1 or 2 2nd Generation Intel Xeon Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory	24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel Optane PMem modules (100 series), 2666 MT/s
Internal Storage	Front: 24 x 3.5-inch SAS/SATA hard drives. Embedded: 4 x 3.5-inch SAS/SATA hard drives. Rear: 16 x 3.5-inch SAS/SATA hard drives 16 x 3.5-inch SAS/SATA hard drives + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs 14 x 3.5-inch SAS/SATA hard drives (or 4 NVMe SSDs for the NVMe model) + 4 x 2.5-inch SAS/SATA hard drives or NVMe SSDs (this configuration does not support internal hard disk and I/O module 1). Flash storage: Two M.2 SSDs
RAID	RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Fan Modules	4 hot-swappable fan modules with optional N+1 redundancy
Power Supply	2 hot-swappable PSUs with optional 1+1 redundancy. Supported options include: 900W AC Platinum PSU 1,500W AC Platinum PSU
Management	BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management
Certification	CE, UL, FCC, CCC, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	175 mm x 447 mm x 748 mm (6.89 in. x 17.60 in. x 29.45 in.)
Operating Temperature	5C to 40C (41F to 104F) (ASHRAE Class A3 compliant)
