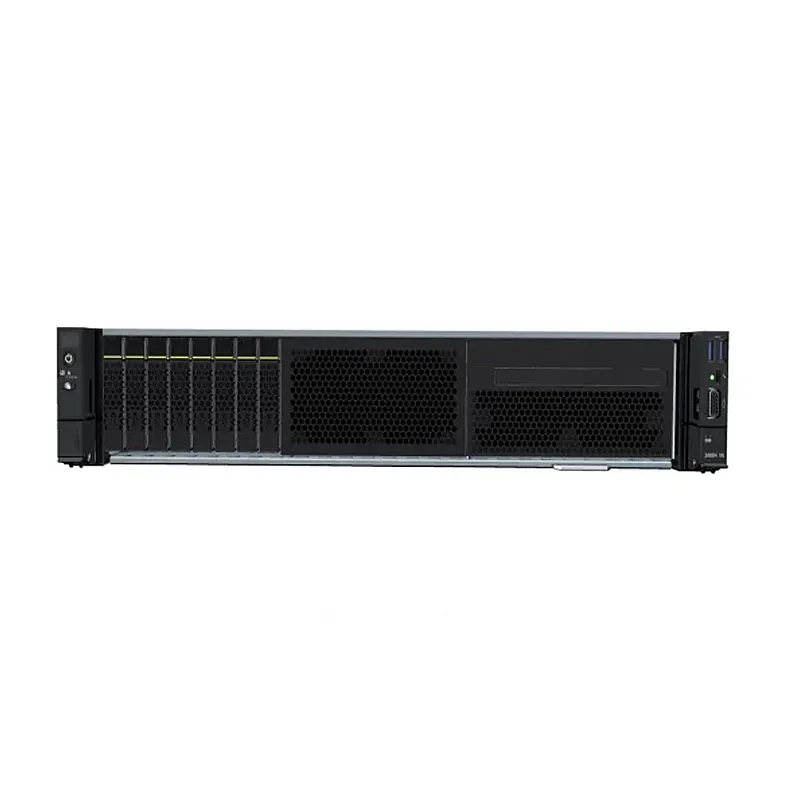

FusionServer 2488H V6 Rack Server

FusionServer 2488H V6 is the lastest 2U, 4-socket (4S) rack server, ideal for computing-intensive scenarios such as cloud computing, virtualization, high-performance computing (HPC), database, and SAP HANA. In virtualization scenarios, the OPEX of one FusionServer 2488H V6 is lower than that of two 2U, 2S rack servers. The 2488H V6 houses four 3rd Gen Intel^??Xeon^??Scalable processors in a 2U space, and supports 48 DDR4 DIMMs, 11 PCIe slots, and up to 25 x 2.5” drives for local storage. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT)?and Fault Diagnosis & Management (FDM), and can be configured with FusionDirector software for entire-lifecycle management, helping drive down OPEX and improve ROI.

Model	FusionServer 2488H V6
Form Factor	2U Rack Server
Processors	2 or 4 x 3rd Gen Intel Xeon Scalable processors (5300/6300/8300 series), TDP up to 250 W
Memory	48 DDR4 DIMM slots, up to 3200 MT/s; up to 24 Intel Optane PMem modules (200 series), 2666 MT/s
Local Storage	Supports hot-pluggable drives with the following configuration options: 8 x 2.5 front SAS/SATA/NVME drives 24 x 2.5 front SAS/SATA drives 25 x 2.5 front SAS/SATA drives 4 x 2.5 front SAS/SATA drives and 8 x 2.5 NVMe SSDs 4 x 2.5 front SAS/SATA drives and 16 x 2.5 NVMe SSDs. Flash storage: 2 x M.2 SSDs
RAID Support	RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration
PCIe Expansion	Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
Heterogeneous Accelerator Cards	2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards
Fan Modules	6 hot-swappable fan modules in N+1 redundancy mode
Power Supply	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 V to 240 V AC), 2000 W AC Platinum PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC), 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) 1500 W HVDC PSUs (input: 260 V to 400 V AC) 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC)
Management	BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management.
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi
Security Features	Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, ect.
Operating Temperature	5C to 45C (41F to 113F), compliant with ASHRAE Classes A3 and A4
Certifications	CE, UL, FCC, CCC, and RoHS, etc
Installation Kit	Adjustable guide rails, holding rails, and cable management arms (CMAs)
Dimensions (H x W x D)	Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
