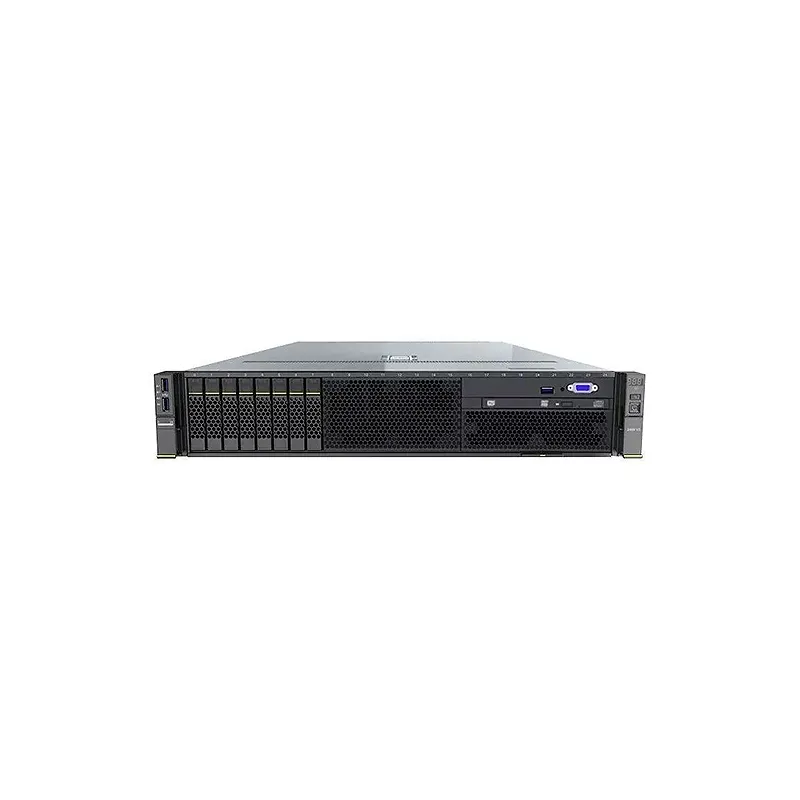

FusionServer 2488H V5 Rack Server

The FusionServer 2488H V5 is a 2U, 4-socket rack server, ideal for virtualization, HPC, database, and SAP HANA. In a virtualization application, one FusionServer 2488H V5 reduces OPEX by about 32 percent compared with two traditional 2U, 2S rack servers. The 2488H V5 supports 4 Intel^??Xeon^??Scalable processors in a 2U space, up to 48 DDR4 DIMMs, and up to 25 x 2.5-inch hard drives for local storage (configurable with 8 NVMe SSDs). It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT)?and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve Return On Investment (ROI). * Source: Test results from Global Computing Innovation OpenLab, Q2 2017.

Model	FusionServer 2488H V5
Form Factor	2U Rack Server
Processors	2 or 4 1st Generation Intel Xeon Scalable processors (5100/6100/8100 series), up to 205 W, 2 or 4 2nd Generation Intel Xeon Scalable processors (5200/6200/8200 series), up to 205 W
Memory	48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel Optane PMem modules (100 series), 2666 MT/s
Internal Storage	Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs on the front, 25 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch SAS/SATA HDDs on the front, 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch NVMe SSDs, Supports flash storage: 2 M.2 SSDs
RAID Support	Supports RAID 0, 1, 5, 6, 10, 50, or 60, Supports a supercapacitor for cache power-off protection, Supports functions such as RAID level migration, drive roaming
LOM Network Ports	2 x GE + 2 x 10 GE ports
PCIe Expansion	Up to 11 PCIe 3.0 slots
Fan Modules	4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units	hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: 2,000W AC Platinum PSUs, 1,500W AC Platinum PSUs, 900W AC Platinum PSUs, 1,200W DC PSUs
Management	BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.
Operating Temperature	5C to 45C (41F to 113F), compliant with ASHRAE Classes A3 and A4
Certifications	CE, UL, FCC, CCC, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	86.1 mm (2U) x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
