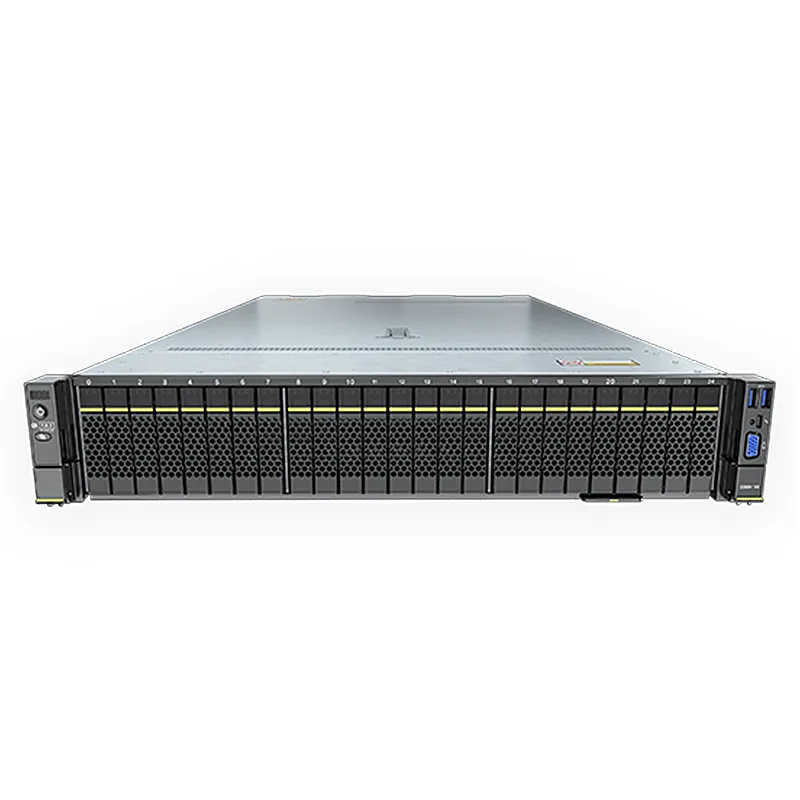

FusionServer 2288H V6 Rack Server

* NOTE: Image may not exactly match the product

FusionServer 2288H V6 Rack Server

$Quote1 Piece(MOQ)

SKU FusionServer 2288H V6 Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Description

$Quote1 Piece(MOQ)

SKU: FusionServer 2288H V6 Categories: , , Brand:

Description

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing, virtualization, databases, and big data. The 2288H V6 is configured with two Intel??Xeon??Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT?and FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Additional information

Model

FusionServer 2288H V6
Form Factor

2U rack server
Processors

One or two 3rd Gen Intel Xeon Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Chipset

Intel C621A
Memory

16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane PMem 200 series, up to 3200 MT/s
Local Storage

Supports various drive configurations and hot swappable: 8-31 x 2.5-inch SAS/SATA/SSD drives 12-20 x 3.5-inch SAS/SATA drives 4/8/16/24 NVMe SSDs Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: 2 x M.2 SSDs
RAID Support

Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network

Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hots wappable function supported
PCIe Expansion

Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Heterogeneous Acceleration Cards

Supports four 300 W FHFL dual-width GPU accelerator cards, eleven HHHL single-width GPU accelerator cards, or eight FHFL single-width GPU accelerator cards.
Fan Modules

Four hot-swappable counter-rotating fan modules in N+1 redundancy mode
Power Supply

900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC), 1500 W AC Platinum PSUs, 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), 1200 W 1200 W C48 V to C60 V DC PSUs (input: C38.4 V to C72 V DC), 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 V to 240 V AC) 2000 W AC Platinum PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
Management

The BMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for smart and simplified management. (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five intelligent technologies,realizing intelligent, automatic, visualized, and refined management throughout the lifecycle
Operating Systems

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc
Operating Temperature

5C to 45C (41F to 113F) (ASHRAE Classes A1 to A4 compliant)
Certification

CE, UL, CCC, FCC, VCCI, RoHS, etc
Installation Kit

Supports L-shaped guide rails, adjustable guide rails, and holding rails.
Dimensions (H x W x D)

Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.), Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 mm (3.40 in. x 17.60 in. x 31.10 in.)
