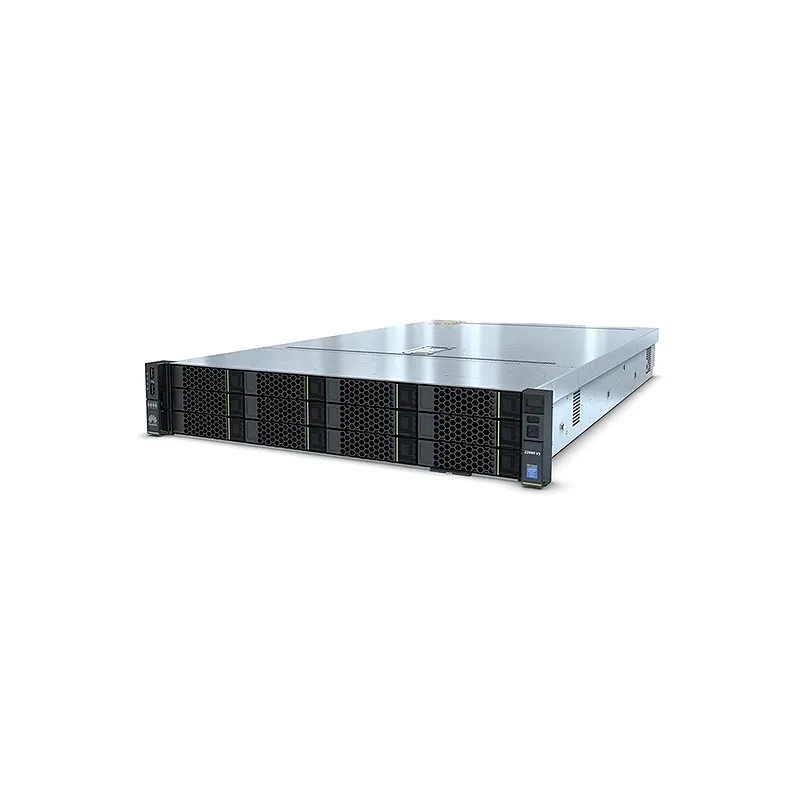

FusionServer 2288H V5 Rack Server

* NOTE: Image may not exactly match the product

FusionServer 2288H V5 Rack Server

$Quote1 Piece(MOQ)

SKU FusionServer 2288H V5 Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Description

$Quote1 Piece(MOQ)

SKU: FusionServer 2288H V5 Categories: , , Brand:

Description

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel??Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

Additional information

Model

FusionServer 2288H V5
Form Factor

2U, 2-socket rack server
Processors

1 or 2 1st Generation Intel Xeon Scalable processors (3100/4100/5100/6100/8100 series), up to 205W, 1 or 2 2nd Generation Intel Xeon Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory

24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel Optane PMem modules (100 series), 2666 MT/s
Internal Storage

Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs. Flash storage: 2 M.2 SSDs
RAID Support

RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for cache power-off protection (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports

LOM: 2 x 10 GE + 2 x GE ports, Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion

Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Heterogeneous Acceleration Cards

Up to 7 single-width half-height half-length accelerator cards, Up to 2 dual-width full-height full-length accelerator cards
Fan Modules

4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs, 900W AC Platinum/Titanium PSUs, 1,500W AC Platinum PSUs, 1,500W 380V HVDC PSUs, 1,200W -48V to -60V DC PSUs
Management

BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management
Operating Temperature

5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant
Certification

CE, UL, FCC, CCC, and RoHS
Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)

Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
