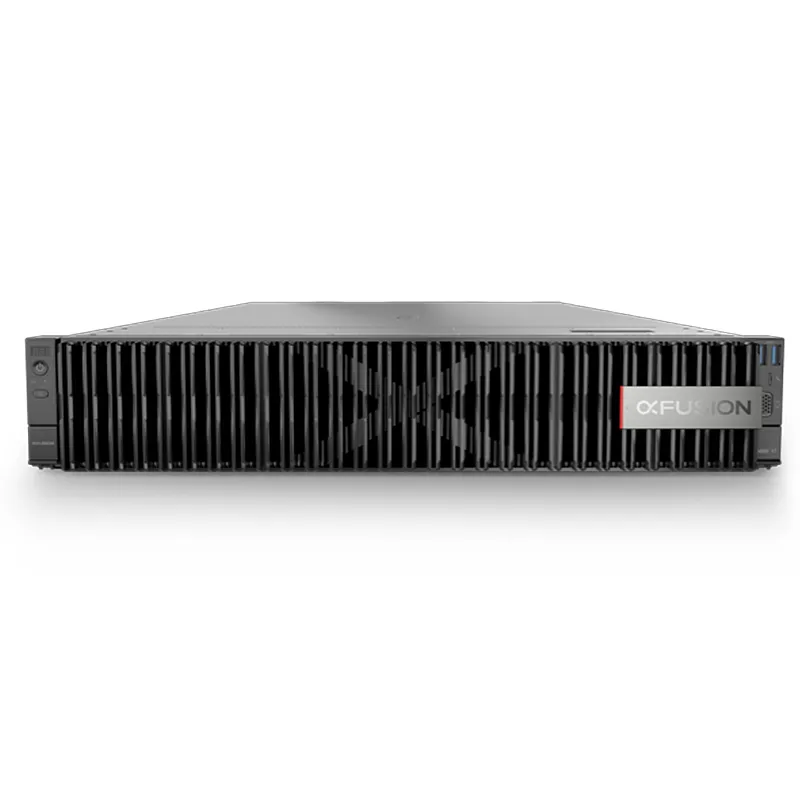

FusionServer 2288 V7

FusionServer 2288 V7 (2288 V7) is a new-generation 2U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.

• 2288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Form Factor	2U rack server
Processors	1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 225 W per processor
Chipset	Emmitsburg PCH
Memory	16 x DDR5 DIMMs, delivering up to 4800 MT/s speed
Local Storage	Supports hot-swappable drives in the following configuration options: • 8 to 31 x 2.5ʺ SAS/SATA/SSD drives • 10 to 14 x 3.5ʺ SAS/SATA drives • 4 x NVMe SSDs • Up to 31 x 2.5ʺ drives. Supports flash storage: • 2 x M.2 SSDs
RAID	Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability for multiple types of networks, Supports OCP 3.0 NICs. One FlexIO card slot supports one OCP 3.0 NIC, which can be configured as required
PCIe Expansion	Up to 8 x PCIe slots, 1 x FlexIO expansion slot dedicated for OCP 3.0, 1 x expansion slot dedicated for the RAID controller card, and 6 x standard PCIe expansion slots
Heterogeneous Acceleration Cards	Up to 4 x 75 W half-height half-length GPU accelerator cards
Fan Modules	4 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC). • 1500 W AC Platinum PSUs, 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC). • 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 to 240 V AC). • 2000 W AC Platinum/Titanium PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.), Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
