Product SKUs

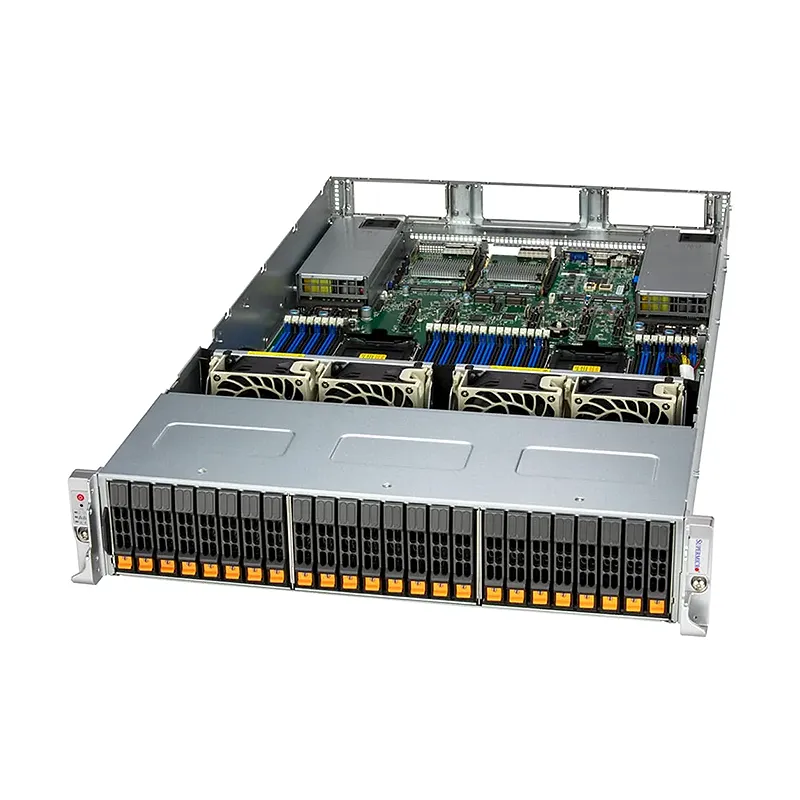

- SuperServerSYS-222C-TN
Motherboard
- Super X14DBHM
Processor
- CPU
Dual Socket E2 (LGA-4710)
Intel Xeon 6700 series processors with E-cores - Core Count
Up to 144C/144T; Up to 108MB Cache per CPU
GPU
- Max GPU Count
Up to 3 double-width or 6 single-width GPUs
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
On-Board Devices
- NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
1 USB 2.0 Type-A port(Rear)
1 USB 3.2 Gen1 Type-A port(Rear) - Video
1 VGA port(Rear)
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 64MB SPI Flash ROM
Management
- Power configurations
ACPI Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-DC201TS-R000NP
Dimensions and Weight
- Height
3.47″ (88 mm)
- Width
17.25″ (438 mm)
- Depth
30.7″ (780 mm)
- Package
9.4″ (H) x 23.5″ (W) x 43.2″ (D)
- Weight
Gross Weight: 83.78 lbs (38 kg)
Net Weight: 61.73 lbs (28 kg) - Available Color
Silver
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 acticity
Power Fail
Power status
System information (overheat/UID) - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 4 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot
Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot - CXL Support
Up to 3 internal CXL 2.0 x16/x8 Type 2/Type 3 devices
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 24 bays 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
System Cooling
- Fans
4x 8cm heavy duty fans with optimal fan speed control
- Air Shroud
1 Air Shroud
Power Supply
- 2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 185 mm
Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)
