Product SKUs

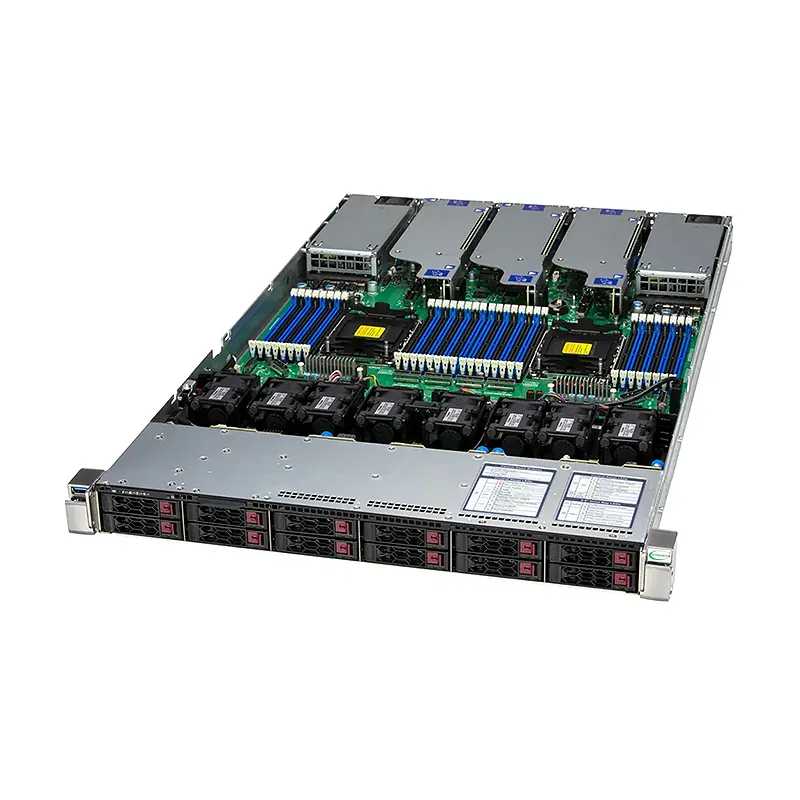

- SuperServerSYS-122C-TN
Motherboard
- Super X14DBHM
Processor
- CPU
Dual Socket E2 (LGA-4710)
Intel Xeon 6700 series processors with E-cores - Core Count
Up to 144C/144T; Up to 108MB Cache per CPU
GPU
- Max GPU Count
Up to 3 single-width GPUs
System Memory
- Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
On-Board Devices
- NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
1 USB 2.0 Type-A port(Rear)
1 USB 3.2 Gen1 Type-A port(Rear) - Video
1 VGA port(Rear)
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 64MB SPI Flash ROM
Management
- Power configurations
ACPI Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-DC101TS-R000NP
Dimensions and Weight
- Height
1.7″ (43.6 mm)
- Width
17.2″ (438.4 mm)
- Depth
29.7″ (755.1 mm)
- Package
7.28″ (H) x 22.83″ (W) x 42.5″ (D)
- Weight
Gross Weight: 41 lbs (19 kg)
Net Weight: 31 lbs (17 kg) - Palletized Packing (W x H x L)
49.6″ (1260 mm) x 4.7″ (120 mm) x 44.5″ (1130 mm)
- Available Color
Silver
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 activity
Power Fail LED
Power status
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
System Cooling
- Fans
8x 4cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
Power Supply
- 2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 185 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
