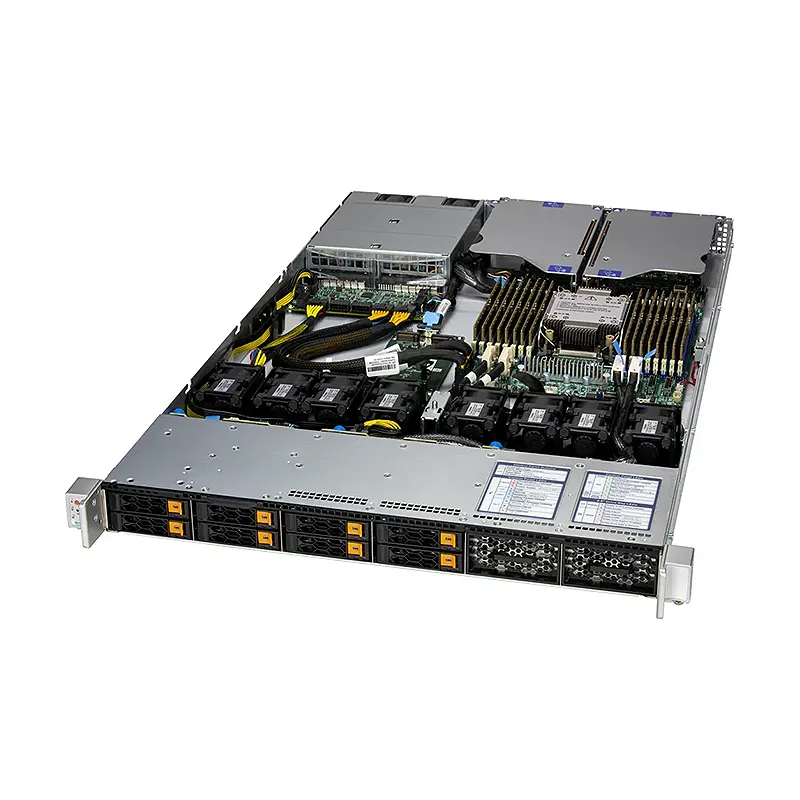

CloudDC SuperServer SYS-112C-TN (Complete System Only

Product SKUs

SuperServerSYS-112C-TN

Motherboard

Super X14SBHM

Processor

CPU
Single Socket E2 (LGA-4710)
Intel Xeon 6700 series processors with E-cores
Core Count
Up to 144C/144T; Up to 108MB Cache

GPU

Max GPU Count
Up to 2 single-width GPUs
CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

Memory
Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM

On-Board Devices

NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
Chipset
System on Chip
Network Connectivity
Via AIOM

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.2 Gen1 Type-A ports(rear)
Video
1 Mini-DP port(Rear)
TPM
1 TPM header

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-MD101TS-R000NDP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
29.4″ (747 mm)
Package
8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
Gross Weight: 47 lbs (21.3 kg)
Net Weight: 31 lbs (14.1 kg)
Available Color
Black

Front Panel

LED
HDD activity
LAN1 activity
LAN2 activity
Power Failed LED
Power status
System information
Buttons
Power On/Off button
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ PCIe 5.0 NVMe/SAS*/SATA* drive bays
Option A: Total 12 bays 8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays 4 front hot-swap 2.5″ SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280(default)/22110; VROC required for RAID)

System Cooling

Fans
8 Counter-Rotating PWM 40x40x56mm Fan(s)

Power Supply

2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 185 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
Test Report
]

Brand	Supermicro
Products Status	New
Applications	CDN, Cloud Computing, Data Center Optimized, Edge Nodes, HPC, Storage Headnode, Virtualization
Max GPU	1
CPU Type	Intel Xeon 6700 series processors with E-cores
Total PCI-E Slots	2
Drives	8
Drive Form Factors	2.5"
Form Factor	1U
Generation	X14
Interface	NVMe (Optional), SAS (Optional), SATA (Optional)
LED	HDD activityLAN1 activityLAN2 activityPower Failed LEDPower statusSystem information
Max GPU Count	Up to 2 single-width GPUs
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Network Connectivity	Via AIOMView AIOM OptionsView AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Depth	29.4" (747 mm)
Fans	8 Counter-Rotating PWM 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/Off buttonUID button
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280(default)/22110; VROC required for RAID)
Memory	Slot Count: 16 DIMM slots/8 ChannelsMax Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 Mini-DP port(Rear)
Core Count	Up to 144C/144T; Up to 108MB Cache
NVMe	NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
Note	Supports up to 350W TDP CPUs (Air Cooled)
Weight	Gross Weight: 47 lbs (21.3 kg)Net Weight: 31 lbs (14.1 kg)
Drive Bays Configuration	Default: Total 8 baysOption A: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.2 Gen1 Type-A ports(rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
TPM	1 TPM Header
CPU	Single Socket E2 (LGA-4710)Intel Xeon 6700 series processors with E-cores
Chipset	System on Chip
