Product SKUs

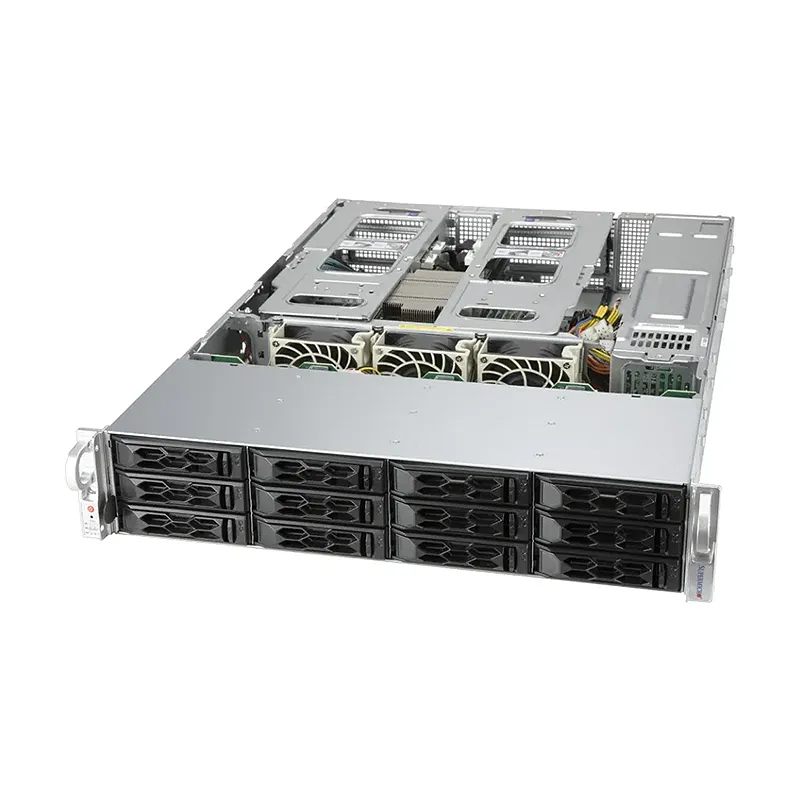

- A+ ServerAS -2014CS-TRStandard version with PWS-920P-1R2 (Platinum Level)
- A+ ServerAS -2014CS-TR-EUEuropean version with PWS-1K23A-1R (Titanium Level)
Motherboard
- Super H12SSW-AN6
Processor
- CPU
Single Socket SP3
AMD EPYC 7002/7003 Series Processors
GPU
- Max GPU Count
Up to 2 double-width or 4 single-width GPUs
- Supported GPU
NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A16, A2, A100, A10
AMD PCIe: Instinct MI210, Instinct MI100
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
On-Board Devices
- SATA
SATA (6Gbps)
- Chipset
System on Chip
- Network Connectivity
Ethernet
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
- Serial
1 COM port(Rear)
System BIOS
- BIOS Type
AMI 256MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-LA26TS-R1K23AWP1
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (648 mm)
- Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
- Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg) - Available Color
Black front & sliver body
Front Panel
- LED
Drive activity
Network activity
Power status
Universal Information (UID) - Buttons
Power On/Off
Universal Information (UID)
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 4 PCIe 4.0 x16 FH/10.5″L slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
- M.2
2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 3.5″ SATA drive bays
Option A: Total 12 bays 8 front hot-swap 3.5″ SATA drive bays 4 front hot-swap 3.5″/2.5″ NVMe* drive bays
Option B: Total 12 bays 12 front hot-swap 3.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
System Cooling
- Fans
3 middle cooling 80x80x38mm Fan(s)
Power Supply
- 2x 920W
2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
920W: 100-127Vac
920W: 100-127Vac / 50-60Hz
920W: 200-240Vac
920W: 200-240Vdc / 50-60Hz
920W: 200-240Vac / 50-60Hz
+12V
Max: 75A / Min: 0A (100Vac-127Vac)
Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
