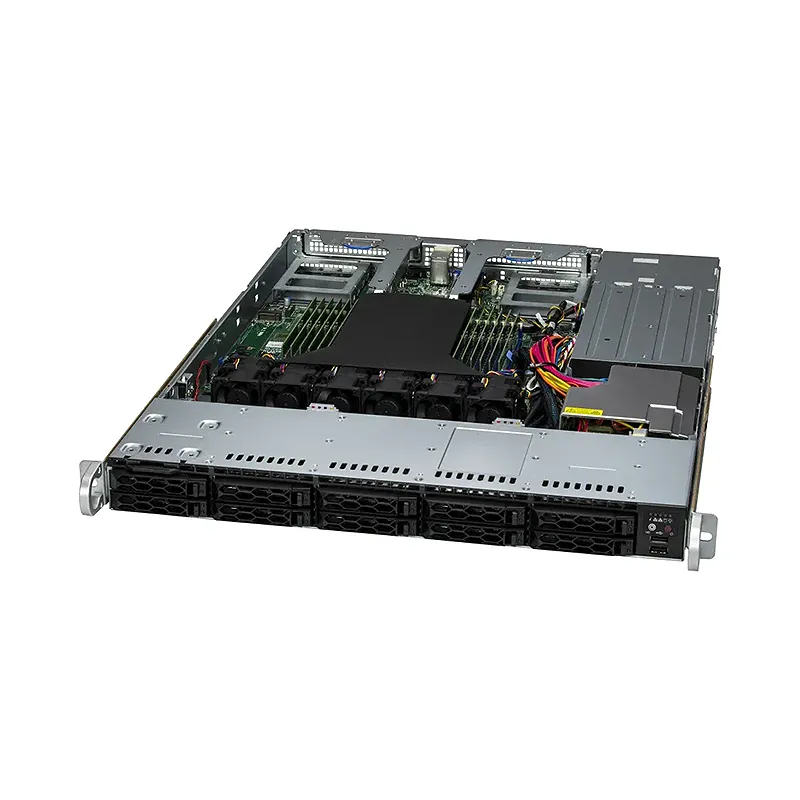

CloudDC A+ Server AS -1115CS-TNR (Complete System Only

Brand	Supermicro
Products Status	New
Applications	CDN, Cloud Computing, Compact Server, Data Center Optimized, DNS & Gateway Servers, Edge Nodes, Firewall Application, Value IaaS, Web Server
Max GPU	1
CPU Type	AMD EPYC 9004/9005 Series Processors
Total PCI-E Slots	2
Drives	10
Drive Form Factors	2.5"
Form Factor	1U
Generation	H13
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
LED	Drive activityNetwork activityPower statusUniversal Information (UID)
Max GPU Count	Up to 2 single-width GPUs
Serial	1 COM port(Rear)
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
Supported GPU	A2View GPU Options, NVIDIA PCIe: L4
Air Shroud	1 Air Shroud
Network Connectivity	Via AIOMView AIOM OptionsView AOC Options
BIOS Features	ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 32MB SPI FLASH ROM
Package	7.8" (H) x 23.8" (W) x 32.4" (D)
Depth	23.5" (597 mm)
Fans	6x 4cm heavy duty fans with optimal fan speed control
Height	1.7" (43 mm)
Buttons	Power On/OffUniversal Information (UID)
M.2	2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Memory
GPU-GPU Interconnect	PCIe
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 160C/320T
Note
Weight	Gross Weight: 46 lbs (20.9 kg)Net Weight: 25 lbs (11.3 kg)
Drive Bays Configuration	Default: Total 10 baysOption A: Total 10 baysOption B: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	2 USB 3.0 ports(rear)2 USB 2.0 ports(front)
Available Color	Black front & sliver body
PCI-Express (PCIe) Configuration	Default
TPM	1 TPM Header
CPU	Single processor(s)AMD EPYC 9004/9005 Series Processors
Chipset	System on Chip
Memory Voltage	1.1V
Environmental Spec.
