Product SKUs

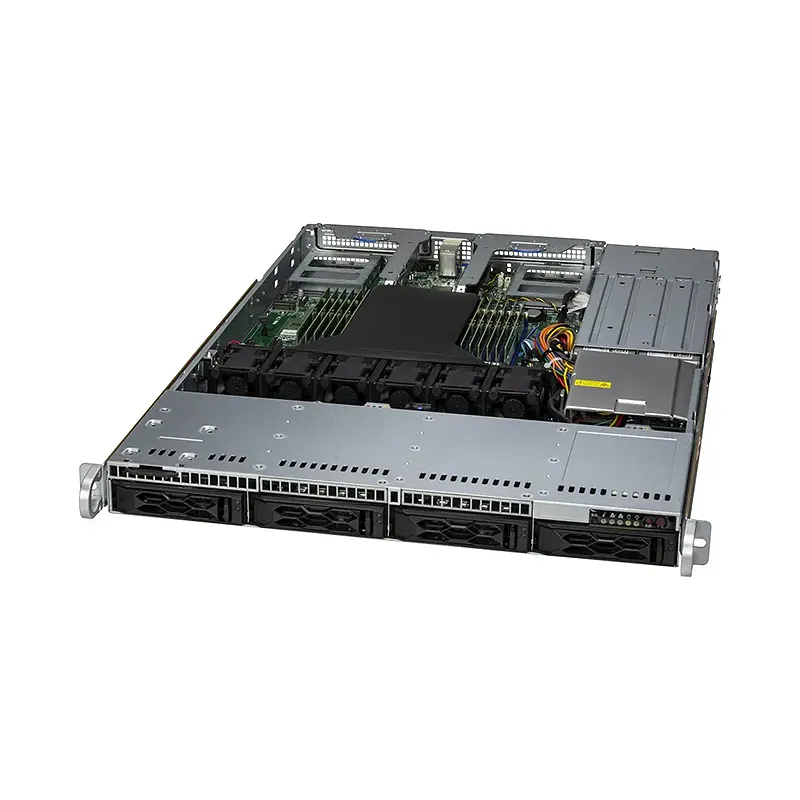

- A+ ServerAS -1015CS-TNRStandard version with PWS-860P-1R2 (Platinum Level)
- A+ ServerAS -1015CS-TNR-EUEuropean version with PWS-861A-1R (Titanium Level)
Motherboard
- Super H13SSW
Processor
- CPU
Single processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x) - Core Count
Up to 160C/320T
GPU
- Max GPU Count
Up to 2 single-width GPUs
- Supported GPU
NVIDIA PCIe: L4, A2
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
- GPU-GPU Interconnect
PCIe
System Memory
- Memory
Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) - Memory Voltage
1.1V
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
- Serial
1 COM port(Rear)
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash ROM
- BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Management
- Power configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Chassis
- Form Factor
1U Rackmount
- Model
CSE-LA15TS-R860AWP2
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
25.6″ (650 mm)
- Package
7.8″ (H) x 23.8″ (W) x 34.6″ (D)
- Weight
Gross Weight: 46 lbs (20.9 kg)
Net Weight: 25 lbs (11.3 kg) - Available Color
Black front & sliver body
Front Panel
- LED
Drive activity
Network activity
Power status
Universal Information (UID) - Buttons
Power On/Off
Reset button
Universal Information (UID)
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″/2.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 2.5″ PCIe 5.0 NVMe* drive bays
Option B: Total 4 bays 4 front hot-swap 3.5″/2.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
6x 4cm heavy duty fans with optimal fan speed control
- Air Shroud
1 Air Shroud
Power Supply
- 2x 860W
2x 860W
2x 860W
2x 860W Redundant Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12V
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
2x 860W
2x 860W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
