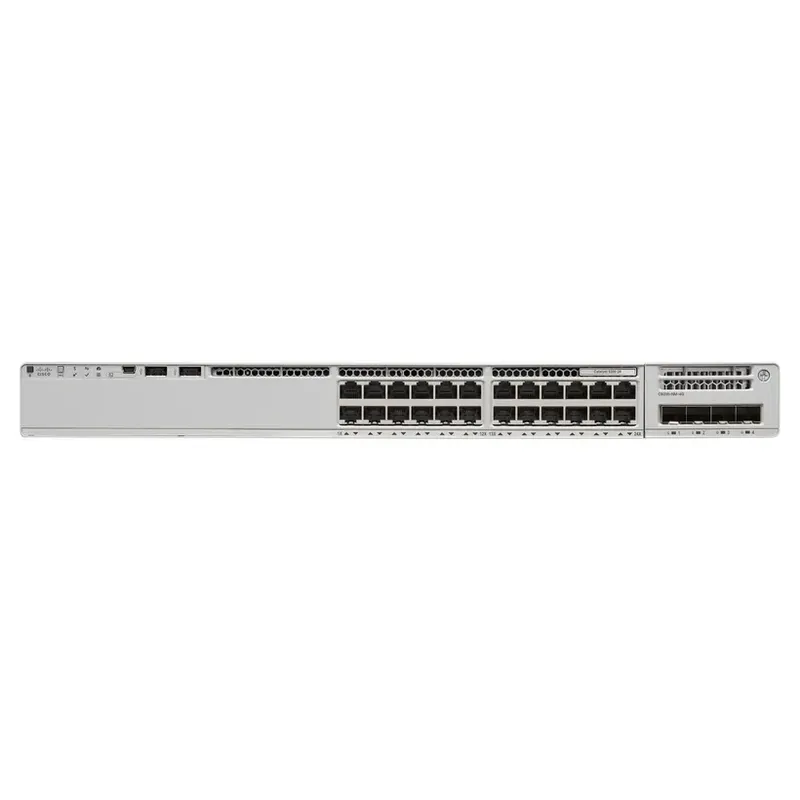

Cisco Catalyst C9200-24T-E Switch (C9200-24T-E)

Catalyst 9200 24-port Data Switch, Network Essentials

$Quote1 Piece(MOQ)

SKU C9200-24T-E Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

C9200-24T-E Overview

C9200-24T-E is the Catalyst 9200 24-port Data Switch, with?Network Essentials software. Cisco? Catalyst? 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise ?C it is secure, always on, and IT simplified.

Catalyst 9200 series provides these highlights:

???? Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

???? Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

???? Flexible downlink options with data or PoE+

???? Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

?? ??UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

???? Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

???? Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

???? Advanced network monitoring using Full Flexible NetFlow

???? Cisco Software-Defined Access (SD-Access):

????? Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

????? Network assurance and improved resolution time through Cisco DNA Center?

???? Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

???? Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

???? ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Fans

FRU redundant

Flash

4 GB

Forwarding rate

190.4 Mpps

Software

Network Essentials

Chassis Dimensions

1.73 x 17.5 x 13.8 in, 4.4 x 44.5 x 35.0 cm

Stacking bandwidth

160 Gbps

Brand

Cisco

DRAM

4 GB

Switching capacity

128 Gbps

Default primary AC power supply

PWR-C6-125WAC

Model

C9200-24T-E
