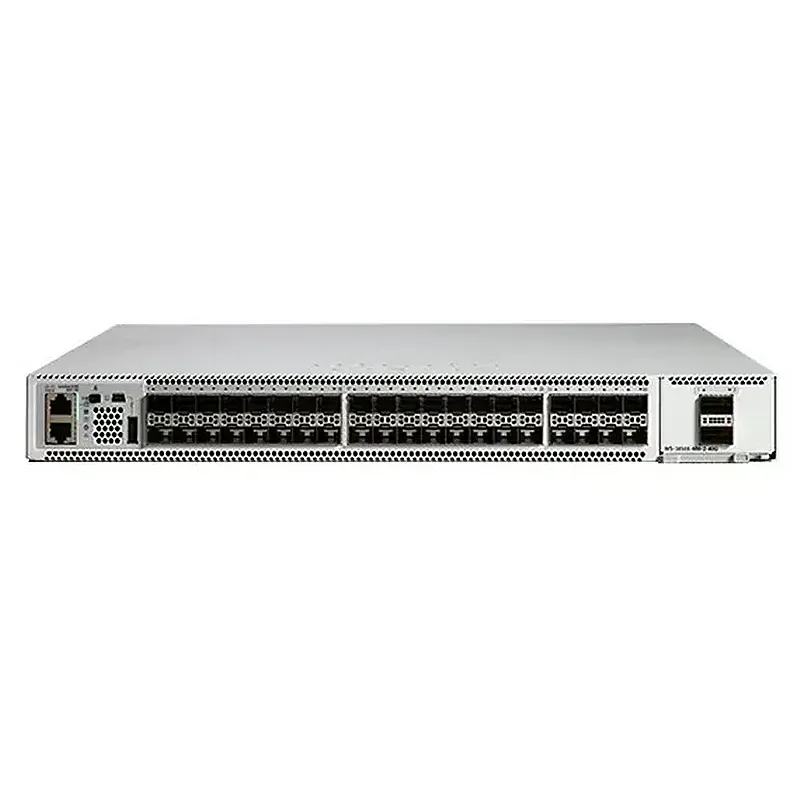

C9500-40X-2Q-A Overview
C9500-40X-2Q-A is Catalyst 9500 40 x 10G, 2 x 40G Bundle, Network Advantage. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick Specs
| Product Code | C9500-40X-2Q-A |
| Description | 40 10-Gigabit Ethernet SFP ports and a 2-Port 40-Gigabit Ethernet (QSFP) network module on uplink ports; and two power supply slots |
| Device Type | Switch – 42 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 40 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP |
| Switching capacity | Up to 960 Gbps |
| Forwarding rate | 720 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
