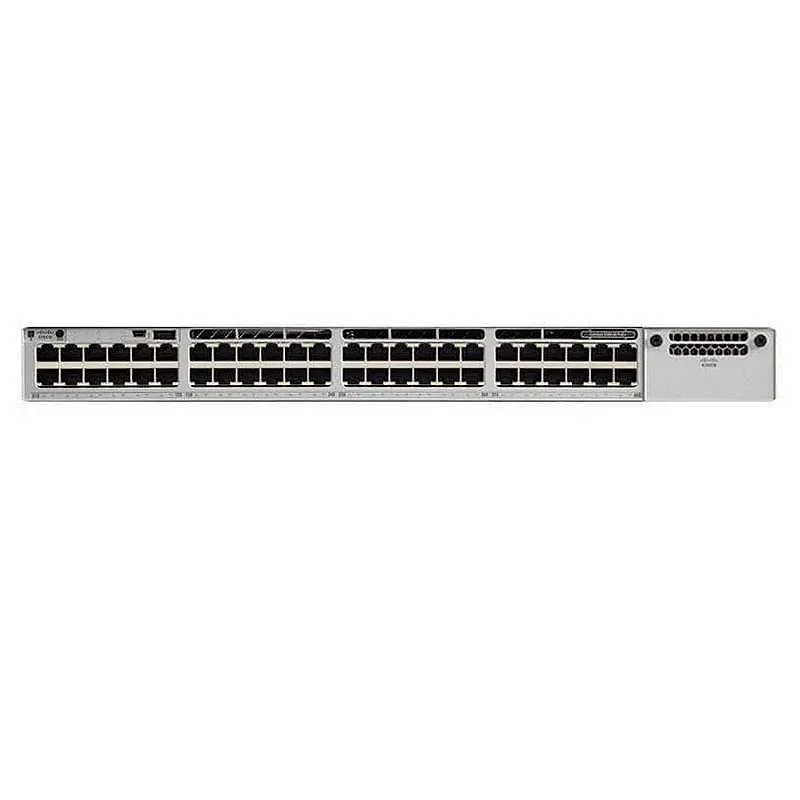

Cisco Catalyst 9300 Series 48 Port Switch C9300-48T-E

C9300-48T-E Overview

The Cisco? Catalyst? 9300 Series Switches are Cisco??s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48T-E is 48-port data only, Network Essentials?Switch of 9300 series. Catalyst 9300 Series?are the next generation of the industry??s most widely deployed switching platform. At 480 Gbps, they are the industry??s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

Quick Spec

Table 1 shows the quick spec.

Product Code	C9300-48T-E
Product Description	Catalyst 9300 48-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports	48
Default AC power supply	350WAC
Available PoE power	—
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds

QoS scale entries	5120
Cisco StackWise-480	Yes
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Flash	16 GB
ACL scale entries	5120
Default AC power supply	350WAC
Mean time between failures (hours)	299,000
Forwarding rate	154.76 Mpps
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
Wireless bandwidth per switch	Up to 96 Gbps on 48-port Gigabit Ethernet model
VLAN IDs	4000
Stacking bandwidth	480 Gbps
Cisco StackPower	Yes
Multicast routing scale	8000
Total 10/100/1000 or Multigigabit copper ports	48
Brand	Cisco
IPv6 routing entries	16,000
Available PoE power	—
Total number of MAC addresses	32,000
DRAM	8 GB
Default power supply	PWR-C1-350WAC-P/2
Weight	16.33 Pounds
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
Total routed ports per 9300 Series stack	208
Jumbo frames	9198 bytes
Total Switched Virtual Interfaces (SVIs)	2000
Switching capacity	256 Gbps on 48-port Gigabit Ethernet model
Model	C9300-48T-E
