C8200L-1N-4T Specification |
|
| Description | C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports |
| Multicore processors | Intel x86 CPU with 4 GB memory default |
| Embedded IPsec VPN hardware acceleration | up to 500 Mbps IPsec traffic |
| SD-WAN overlay tunnels scale | 1500 |
| Integrated Gigabit Ethernet ports | 4 built-in Ethernet WAN ports
2 SFP Ethernet ports, 2 RJ45 ports |
| Flash memory support | 8-GB flash |
| Power supply | AC power supply |
| Modularity and form factor | 1-Rack Unit (1RU) form factor
Supports NIM and Pluggable Interface Module (PIM) slots |
| 1G port density | 4 |
| Slots | 1 NIM
1 PIM |
| DRAM | 4 GB |
| Storage (M.2 SSD) default | 16 GB |
| IPv4 forwarding throughput (1400 bytes) | Up to 3.8 Gbps |
| IPsec throughput (1400 bytes, clear text**) | Up to 500 Mbps |
| Number of IPsec static virtual tunnel interface (SVTI) tunnels | 1500 |
| Number of access control lists (ACLs) per system | 4000 |
| Number of IPv4 access control entries (ACEs) per system | 72,000 |
| Number of IPv4 routes | 800,000 with default 4 GB, up to 4M with 32 GB |
| Number of IPv6 routes | 800,000 with default 4 GB, up to 4M with 32 GB |
| Number of queues | 16,000 |
| Number of Network Address Translation (NAT) sessions | 600,000 with default 8 GB, up to 2M with 32 GB |
| Number of firewall sessions | 512,000 |
| Number of Virtual Route Forwarding (VRF) instances | 2000 |
* NOTE: Image may not exactly match the product

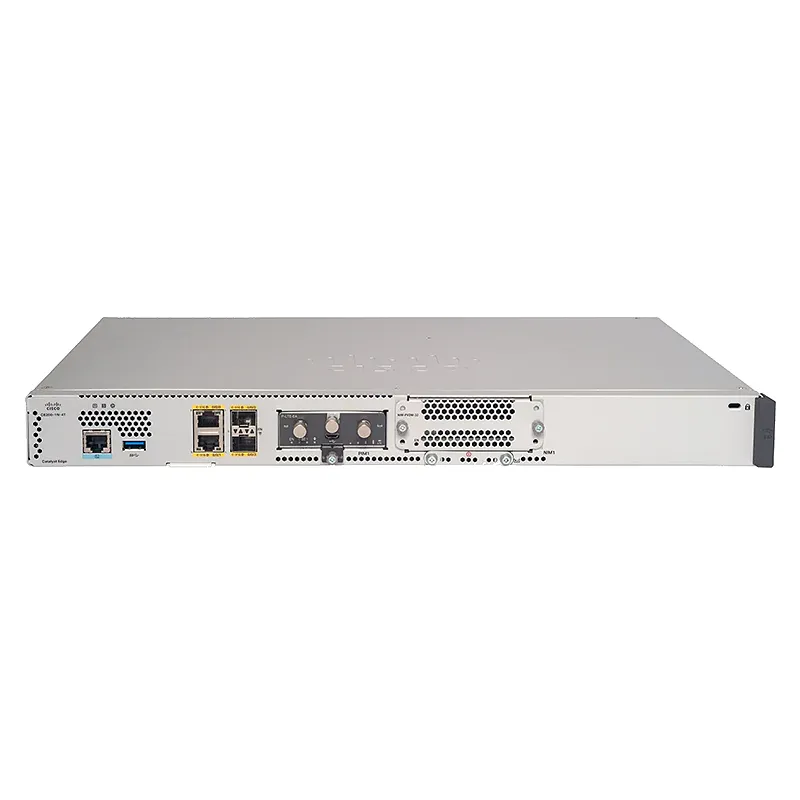

Cisco Catalyst 8200 C8200L-1N-4T Router
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Series | Cisco Catalyst 8200 Series |
|---|---|
| Brand | Cisco |
| Model | C8200L-1N-4T |
