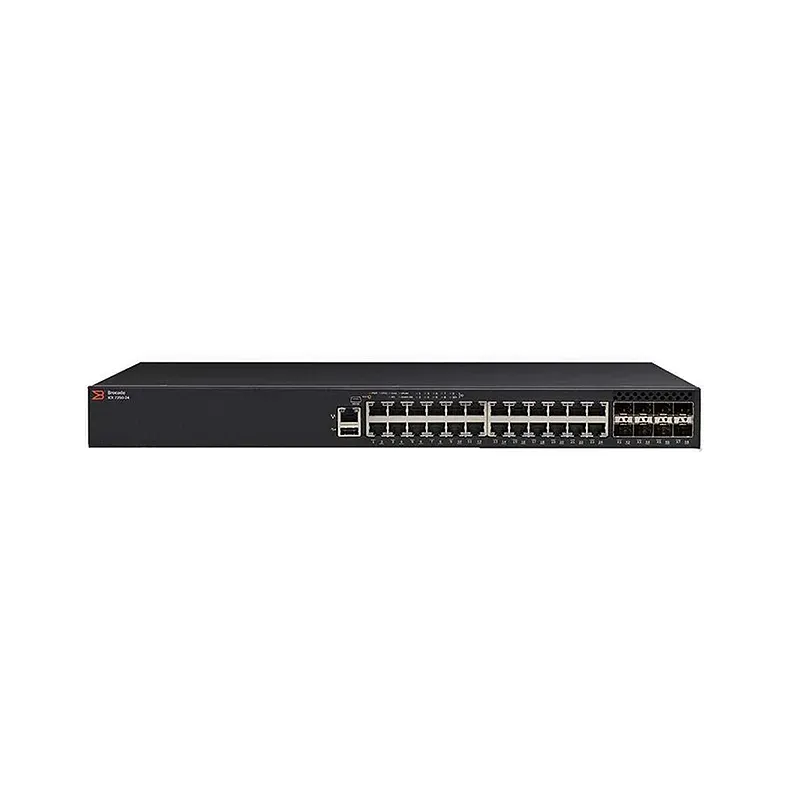

CX 7250 switch combines enterprise-class features, manageability and the flexibility and ??pay as you grow?? scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8??10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576??1 GbE) per stack.
ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE/PoE+ port availability. The Ruckus ICX 7250 is easy to deploy, manage, and integrate into both new and existing networks.
Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price??without compromising performance and reliability.
ICX 7250 delivers wire-speed, non-blocking performance across all ports to support latency-sensitive applications, such as real-time voice/video streaming and Virtual Desktop Infrastructure (VDI).
24??10/100/1000 ports
6??1 GbE SFP
2??10 GbE SFP+ uplink/stacking-ports upgradable to up to 8??10 GbE SFP+ with license
Side-to-back airflow
Switching capacity (data rate, full duplex): 208 Gbps
Forwarding capacity (data rate, full duplex): 154 Mpps
Aggregated stacking bandwidth: 480 Gbps
Stacking density (maximum switches in a stack): 12
Stacking ports (maximum ports usable for stacking): Up to 4??10 GbE SFP+ per switch (10 Gbps SFP+ ports are required for stacking. )
Maximum stacking distance (distance between stacked switches): 10 km
