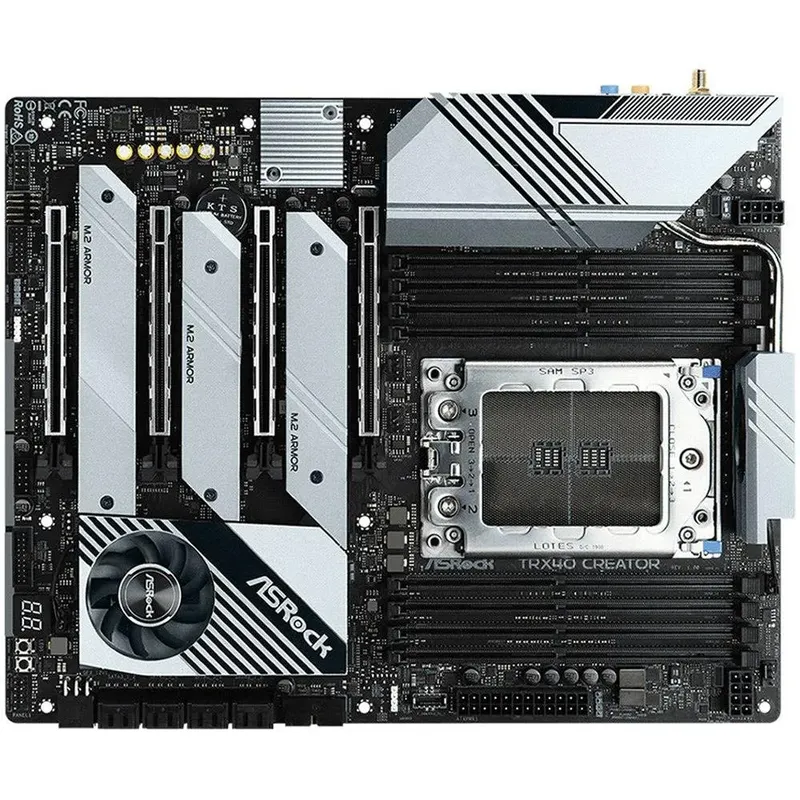

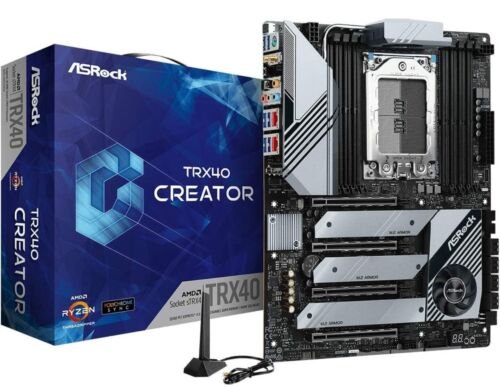

Asrock TRX40 Creator

Size	30.5cmx24.4cm
Product Name	Asrock TRX40 Creator
Application	PC
Brand	Asrock
Packaging Details	BOX
Chipset	AMD TRX40 Series
CPU Socket Type	AMD sTRX4
CPU Brand	AMD
Memory	Quad Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non ECC, un buffered memory (U DIMM) Max. capacity of system memory: 256GB 15 Gold Contact in DIMM Slots
Warranty	1 Year
Internal I/O Connectors	1 x TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15 Gold Audio Connector)** – 1 x Right Angle Front Panel Audio Connector**** – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) – 1 x Dr. Debug with LED – 1 x Power Button – 1 x Reset Button – 1 x CPU Xtreme OC Switch
Products Status	New
Socket	AMD sTRX4
Back I/O Ports	2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)* – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Form Factor	ATX
