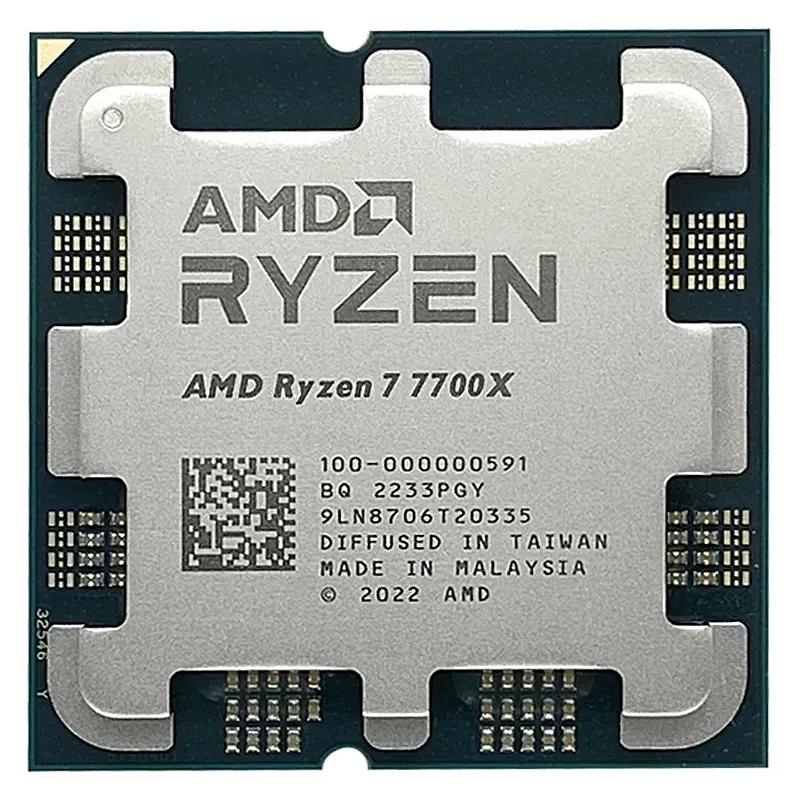

AMD 7 7700X CPU Socket AM5 Desktop processor

Brand	AMD
Products Status	New
Product Family	AMD Ryzen
Series	AMD Ryzen 7 7000 Series
Part Number	AMD Ryzen 7 7700X
Product ID Tray	100-000000591
Application	Desktops
CPU Socket Type	AM5
Code Name	Raphael AM5
Total Cores	8
Total Threads	16
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Architecture	Zen 4
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5.4 GHz
Base Clock	4.5 GHz
L2 Cache	8 MB
L3 Cache	32 MB
TDP	105 W
Manufacturing Tech	TSMC 5nm FinFET
CPU Compute Die (CCD) Size	71mm²
Unlocked for Overclocking	Yes
AMD EXPO Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)	95°C
*OS Support	RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 2.0 (480Mbps) Ports	1
PCI Express® Version	PCIe 5.0
Native PCIe Lanes (Total/Usable)	24, 28
NVMe Support	Boot, RAID0, RAID1, RAID10
Memory Type	DDR5
Memory Channels	2
Max. Memory	128 GB
Max Memory by Socket	[{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R", "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}
ECC Support	Yes (Requires mobo support)
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C DisplayPort Alternate Mode	Yes
