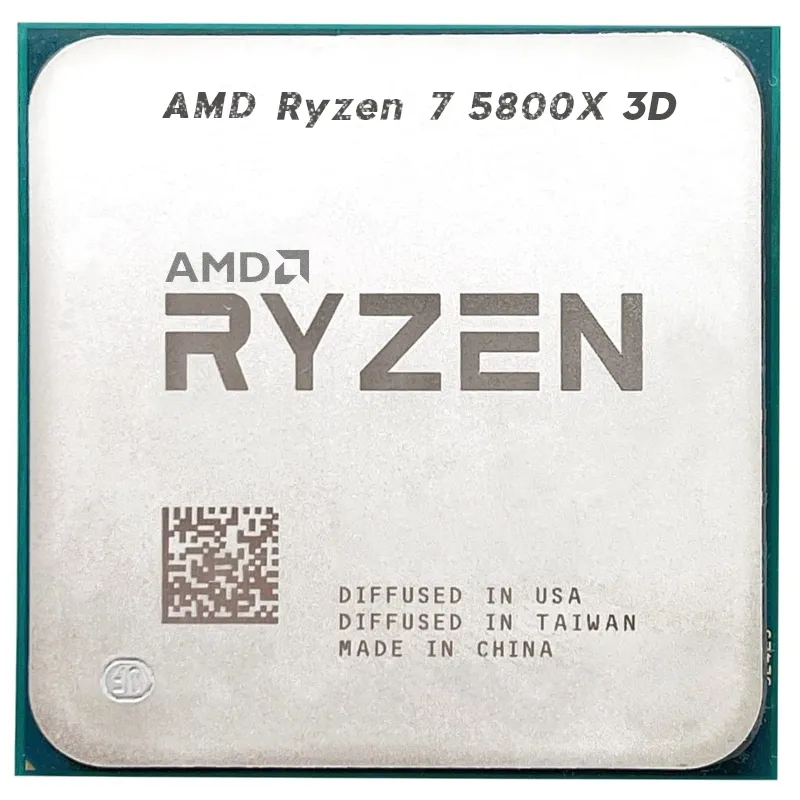

AMD Ryzen7 5800X3D CPU Socket AM4 Desktop processor

Memory Types	DDR4
Code Name	Vermeer
Max. Boost Clock	Up to 4.5 GHz
TDP	105 W
Supported Extensions	AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Total Threads	16
Max. Operating Temperature (Tjmax)	90C
Base Clock	3.4 GHz
Architecture	Zen 3
Max. Memory	128 GB
Manufacturing Tech	7 nm
Product Family	AMD Ryzen
AMD PRO Technologies	No
NVMe Support	Boot, RAID0, RAID1, RAID10
Brand	AMD
*OS Support	RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition
CPU Compute Die (CCD) Size	74mm2
Regional Availability	APJ, China, EMEA, Global, LATAM, NA
Memory Type	DDR4
Multithreading (SMT)	Yes
Description	The AMD Ryzen 7 5800X3D CPU is a high-performance desktop processor built on the AM4 socket. Featuring 8 cores and 16 threads, it boasts a base clock speed of 3.4 GHz and can boost up to 4.5 GHz. What sets it apart is its integrated 3D V-Cache technology, enhancing performance by increasing cache capacity. This makes the Ryzen 7 5800X3D ideal for gaming, content creation, and demanding applications where increased cache can significantly improve responsiveness and overall system performance.
Native USB 2.0 (480Mbps) Ports	0
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Processor Base Frequency	3.40 GHz
Max Memory by Socket	"memoryType":["DDR4-2667"]}], "memoryType":["DDR4-2933"]}, "memoryType":["DDR4-3200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R"
Series	AMD Ryzen 7 5000 Series
Memory Channels	2
ECC Support	Yes (Requires mobo support)
Graphics Model	Discrete Graphics Card Required
Native PCIe Lanes (Total/Usable)	20, 24
CPU Socket Type	TRX4
Application	Desktop
Cache	96 MB
Part Number	AMD Ryzen 7 5800X3D
L2 Cache	4 MB
Total Cores	8
Consumer Use	Yes
Products Status	New
PCI Express® Version	PCIe 4.0
