| Memory Types | DDR5 |
|---|---|
| Code Name | Phoenix |
| DisplayPort Max Refresh Rates (SDR) | 1920×1080 @ 600Hz, 2560×1440 @ 480Hz, 3440×1440 @ 360Hz, 3840×2160 @ 240Hz, 7680×4320 @ 60Hz |
| Max. Boost Clock | Up to 5 GHz |
| DirectX Version | 12 |
| TDP | 65 W |
| HDMI Version | 2.1 |
| Native USB 4 (40Gbps) Ports | 2 |
| Graphics Core Count | 8 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| Total Threads | 12 |
| Unlocked for Overclocking | Yes |
| Max. Operating Temperature (Tjmax) | 95C |
| Base Clock | 4.3 GHz |
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1080p630 8bpc H.265, 1080p864 8/10bpc AV1, 1440p373 8bpc H.264, 1440p373 8bpc H.265, 1440p513 8/10bpc AV1, 2160p175 8bpc H.264, 2160p175 8bpc H.265, 2160p240 8/10bpc AV1, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 |
| Wireless Display | Miracast |
| Architecture | Zen 4 |
| Max. Memory | 256 GB |
| Manufacturing Tech | 4 nm |
| Product Family | AMD Ryzen |
| AMD PRO Technologies | No |
| NVMe Support | Boot, RAID0, RAID1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Brand | AMD |
| *OS Support | RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition |
| CPU Compute Die (CCD) Size | 178mm2 |
| Regional Availability | Global |
| DisplayPort Extensions | Adaptive-Sync, HDR Metadata, UHBR10 |
| Memory Type | DDR5 |
| Multithreading (SMT) | Yes |
| AMD Configurable TDP (cTDP) | 45-65W |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Processor Base Frequency | 4.30 GHz |
| AMD Ryzen AI | Available |
| Max Memory by Socket | "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}, [{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R" |
| Series | AMD Ryzen 5 8000 Series |
| Max Video Decode Bandwidth | 1080p1200 8bpc H.264, 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc H.265, 1080p786 8/10bpc VP9, 1080p960 8/10bpc AV1, 2160p196 8/10bpc H.265, 2160p196 8/10bpc VP9, 2160p240 8/10bpc AV1, 2160p300 8bpc H.264, 4320p49 8/10bpc H.265, 4320p49 8/10bpc VP9, 4320p60 8/10bpc AV1, 4320p75 8bpc H.264 |
| Memory Channels | 2 |
| Graphics Model | AMD Radeon 760M |
| Native PCIe Lanes (Total/Usable) | 16, 20 |
| Precision Boost Overdrive | Yes |
| CPU Socket Type | |
| Application | Desktop |
| Product ID Tray | 100-000001237 |
| HDCP Version Supported | 2.3 |
| AMD SmartAccess Memory | Available |
| Cache | 16 MB |
| Part Number | AMD Ryzen 5 8600G |
| Graphics Frequency | 2800 MHz |
| L2 Cache | 6 MB |
| Total Cores | 6 |
| Consumer Use | Yes |
| Max Memory Size | 256 GB |
| Products Status | New |
| DisplayPort Version | 2.1 |
| Curve Optimizer Voltage Offsets | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| PCI Express® Version | PCIe 4.0 |
* NOTE: Image may not exactly match the product

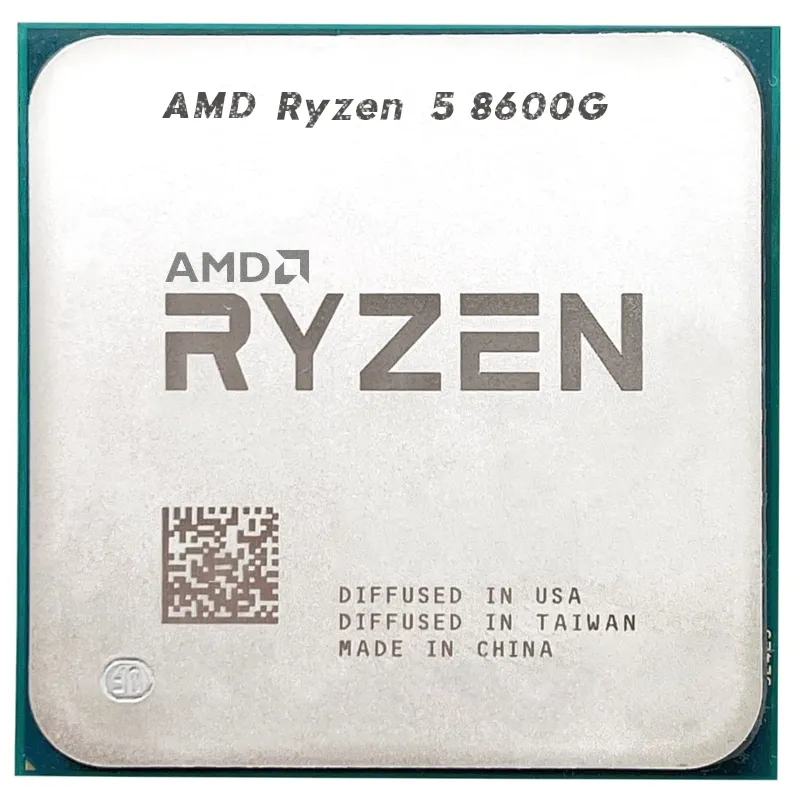

AMD 5 8600G CPU Socket AM5 Desktop processor
